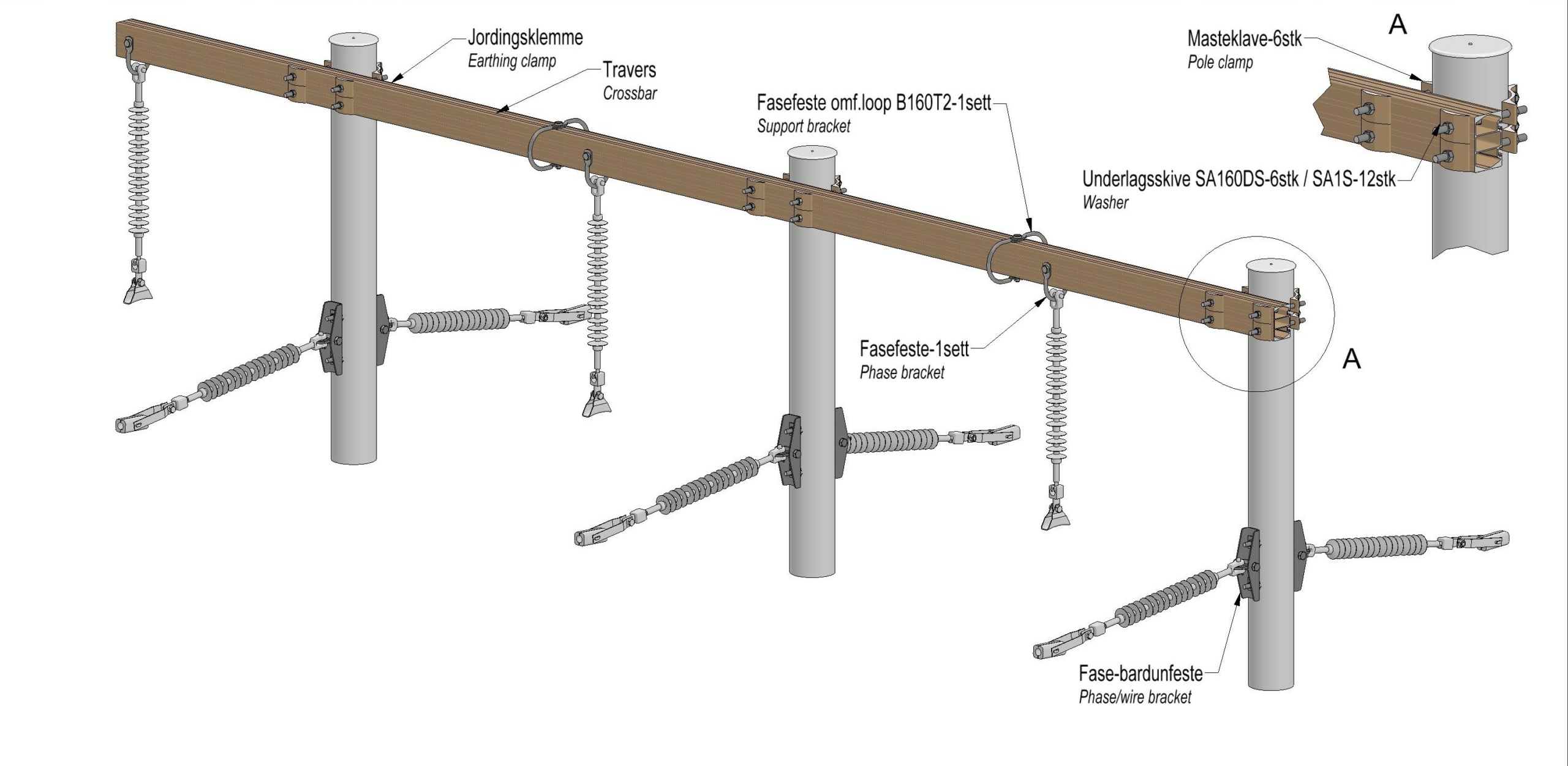

Anch.crossbar T3AO-3030D-34-3S
Anchoring crossbar for two-sided connection. 3-pole.
For overhead shield wires and face wire loop.

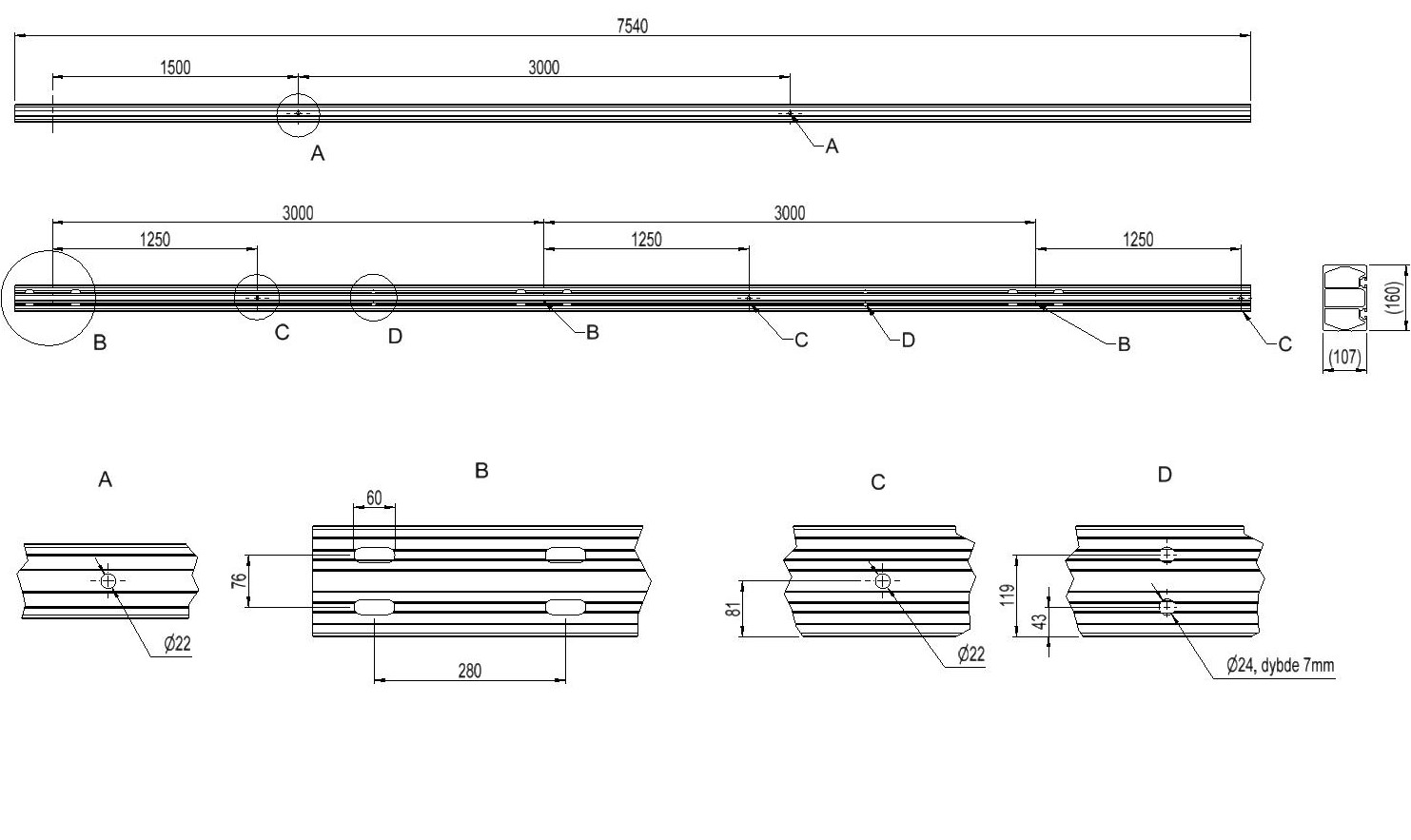

Pole distance 3m, phase distanse 3m.
Twin pole clamp. Oblong hole distance 280mm.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Crossarm type | Triple pole |
| Pole distance | 3m |
| Phase distance | 3m |
| Pole fastening | 280mm-double pole clamp |

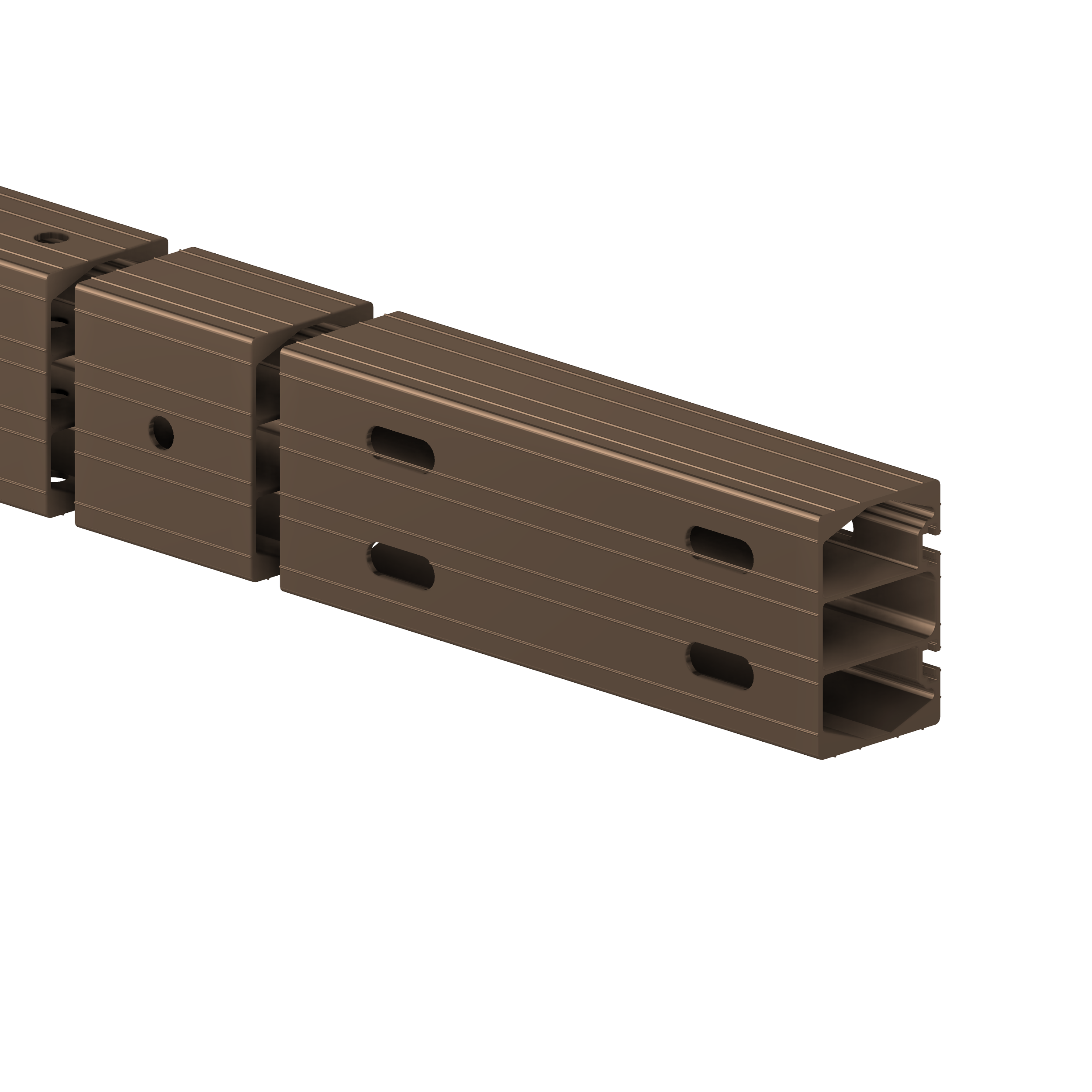

| Crossbar profile | P3 (107×160) |
