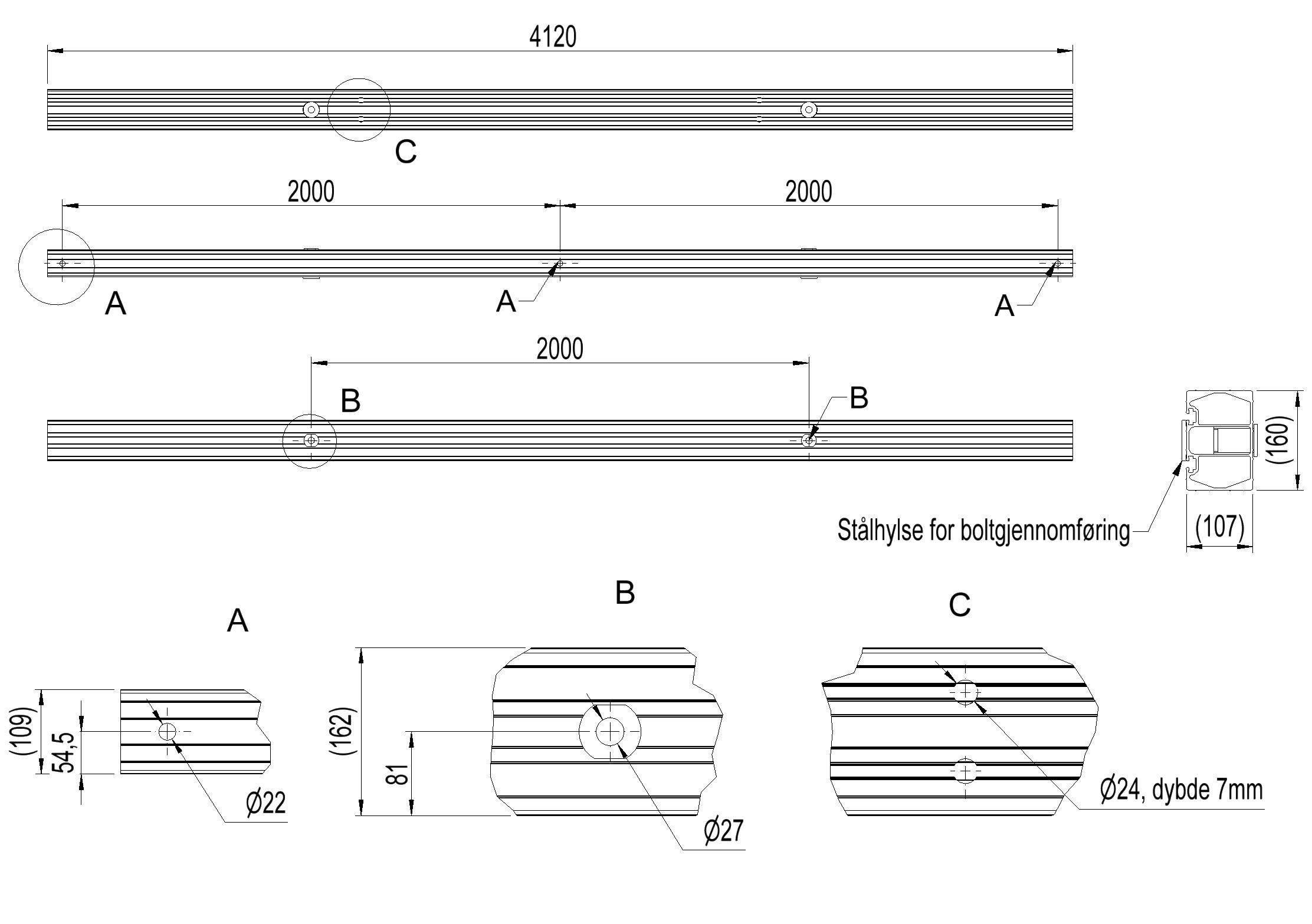

Anch. crossbar TA2020BH-3S

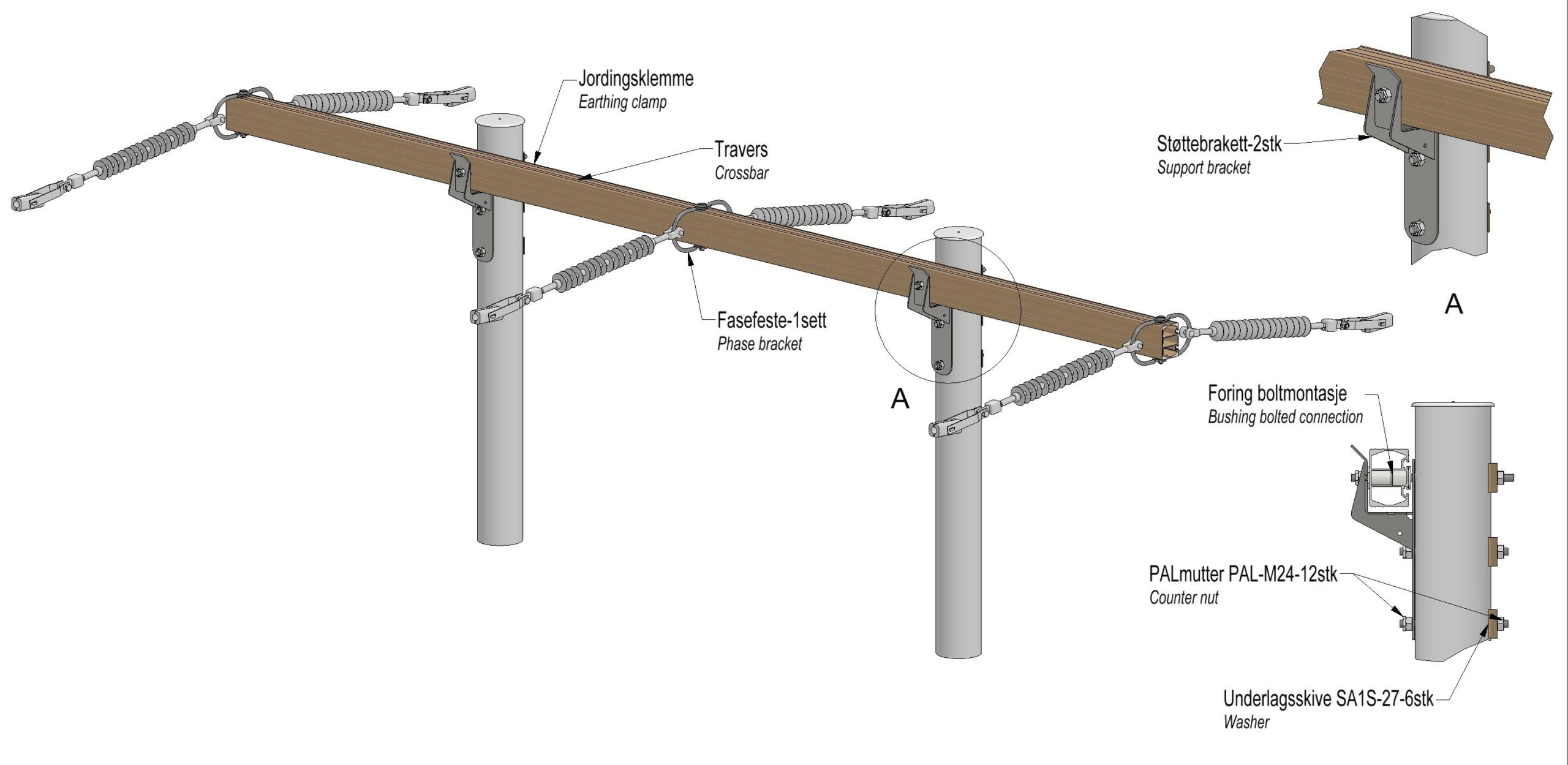

Anchoring crossbar for two-sided connection. 2-pole.
Pole distance 2m, phase distanse 2m.
Bolted connection M24
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Material-2 | Steel galvanised |
| Crossarm type | H/A-pole |
| Pole distance | 2m |
| Phase distance | 2m |
| Pole fastening | Bolt with bolt sleeve |
| Crossbar profile | P3 (107×160) |
