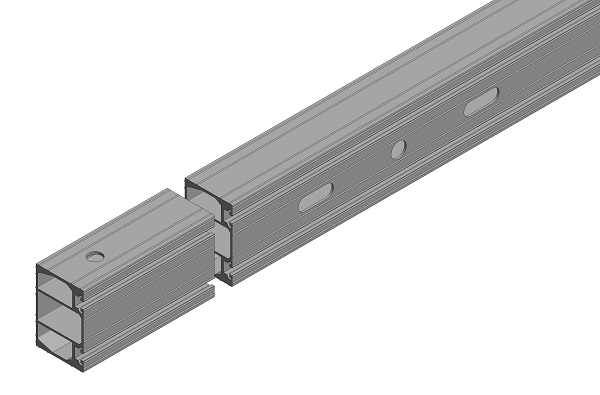

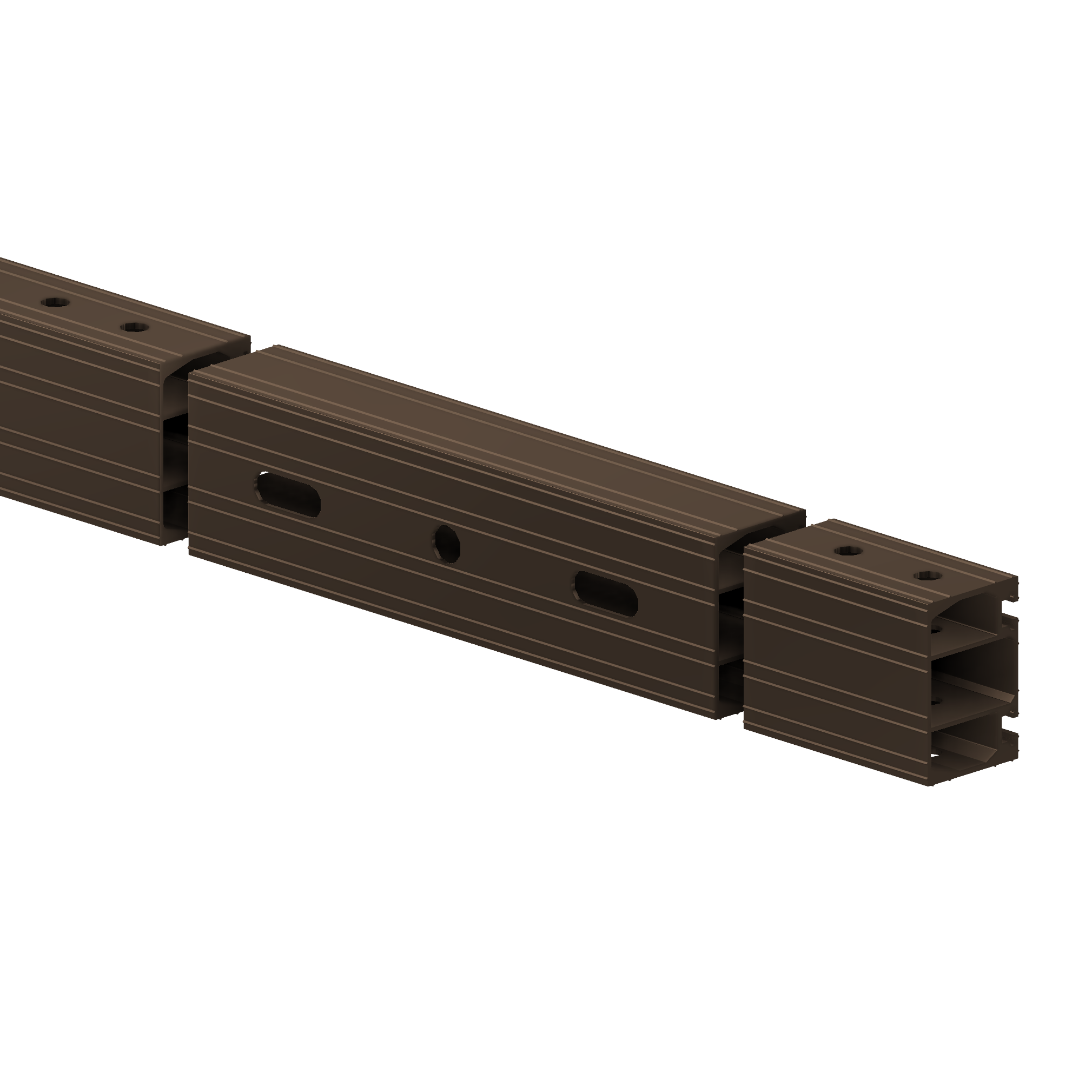

Anch. crossbar TA22S

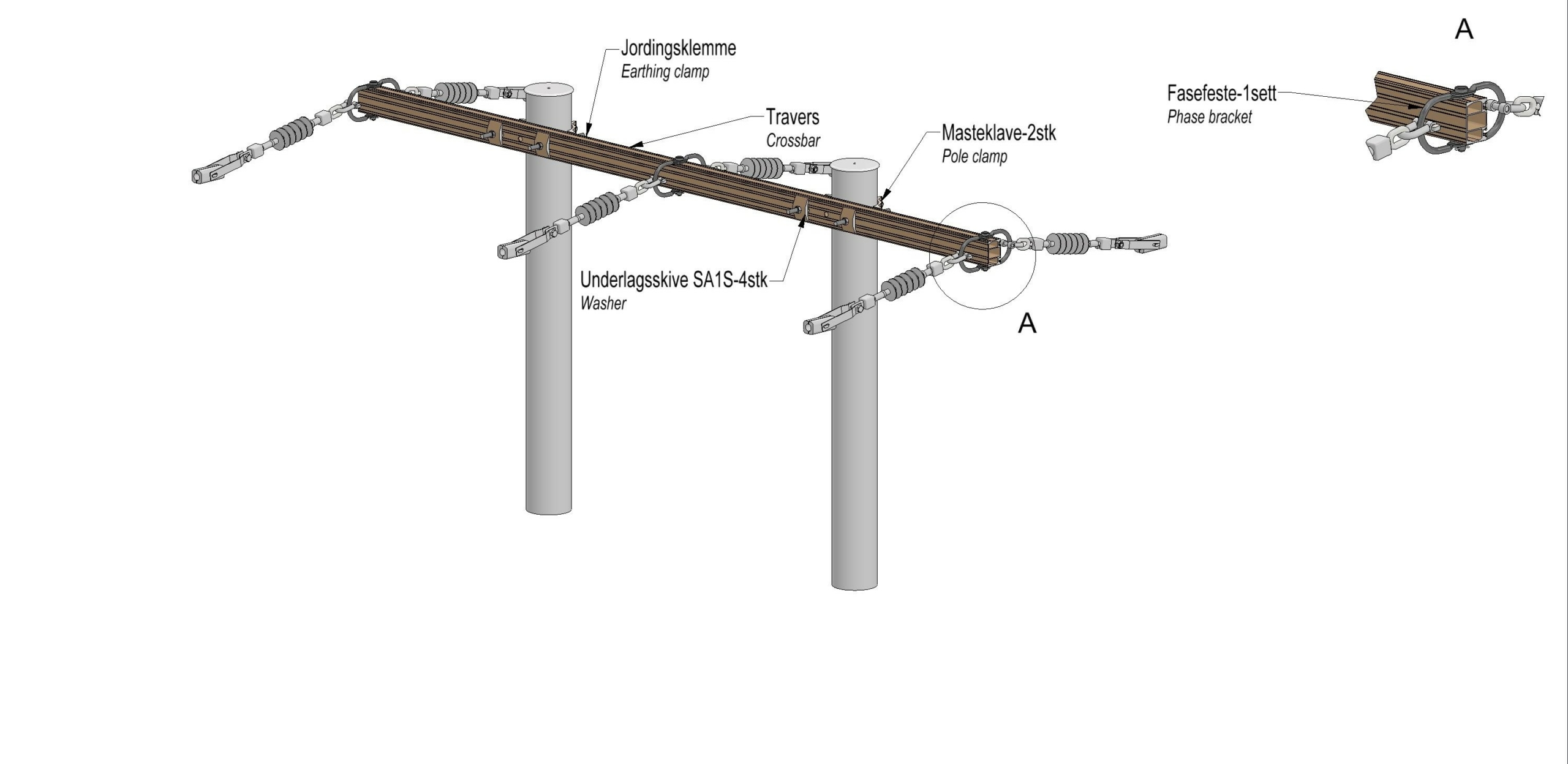

Anchoring crossbar for two-sided connection. 2-pole.

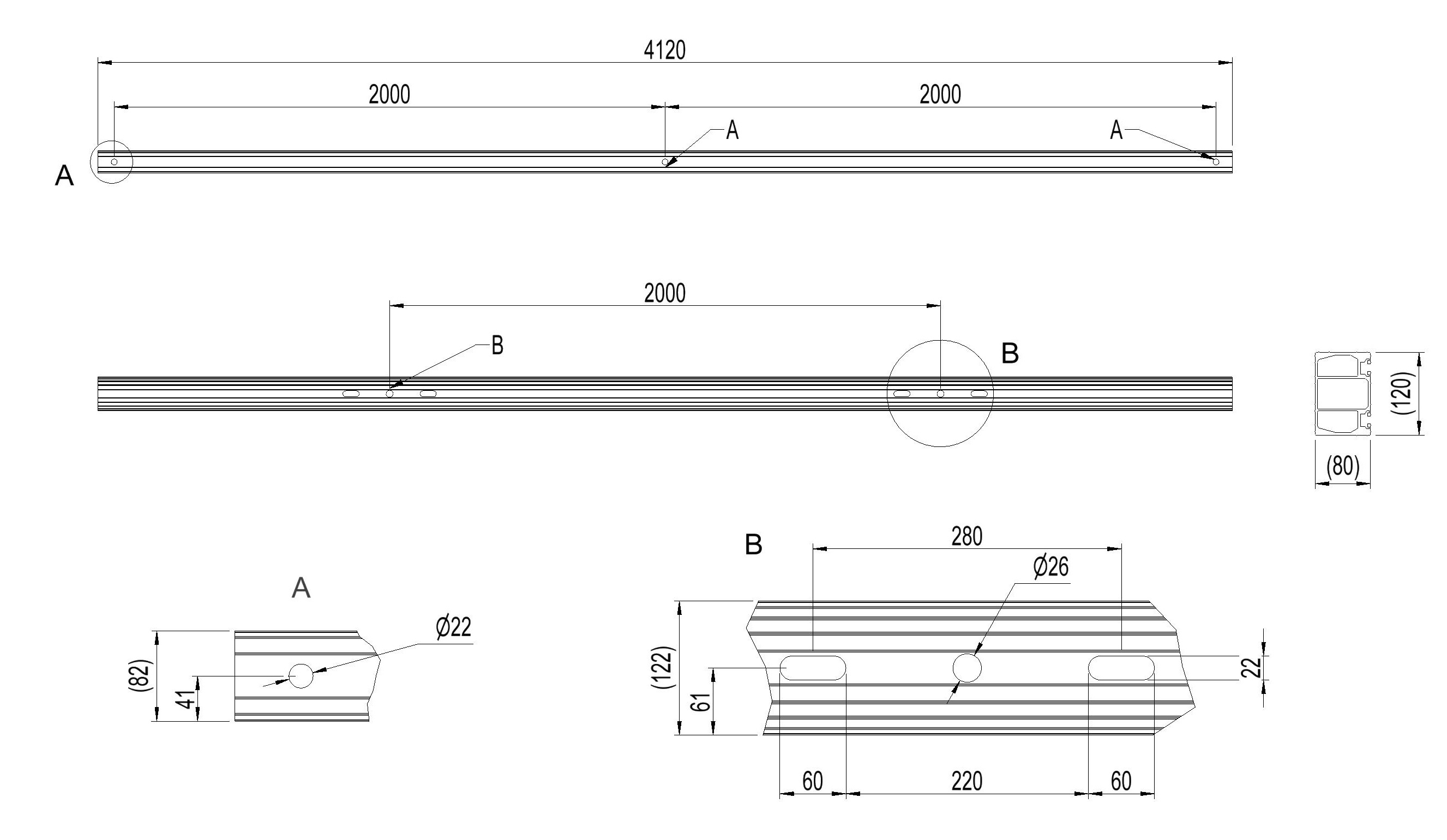

Pole distance 2m, phase distanse 2m.
Oblong hole distance 280mm.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Crossarm type | H/A-pole |
| Pole distance | 2m |
| Phase distance | 2m |
| Pole fastening | 280mm-single poleclamp, Bolt |
| Crossbar profile | P2 (80×120) |
