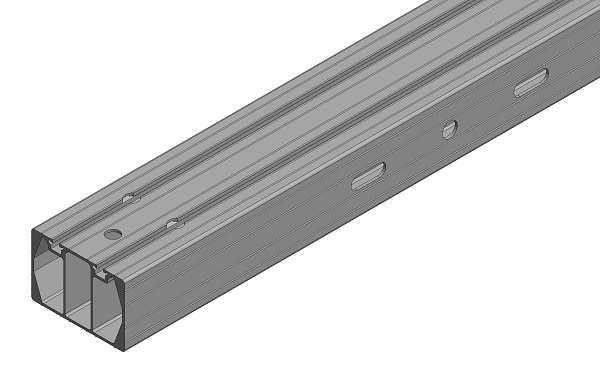

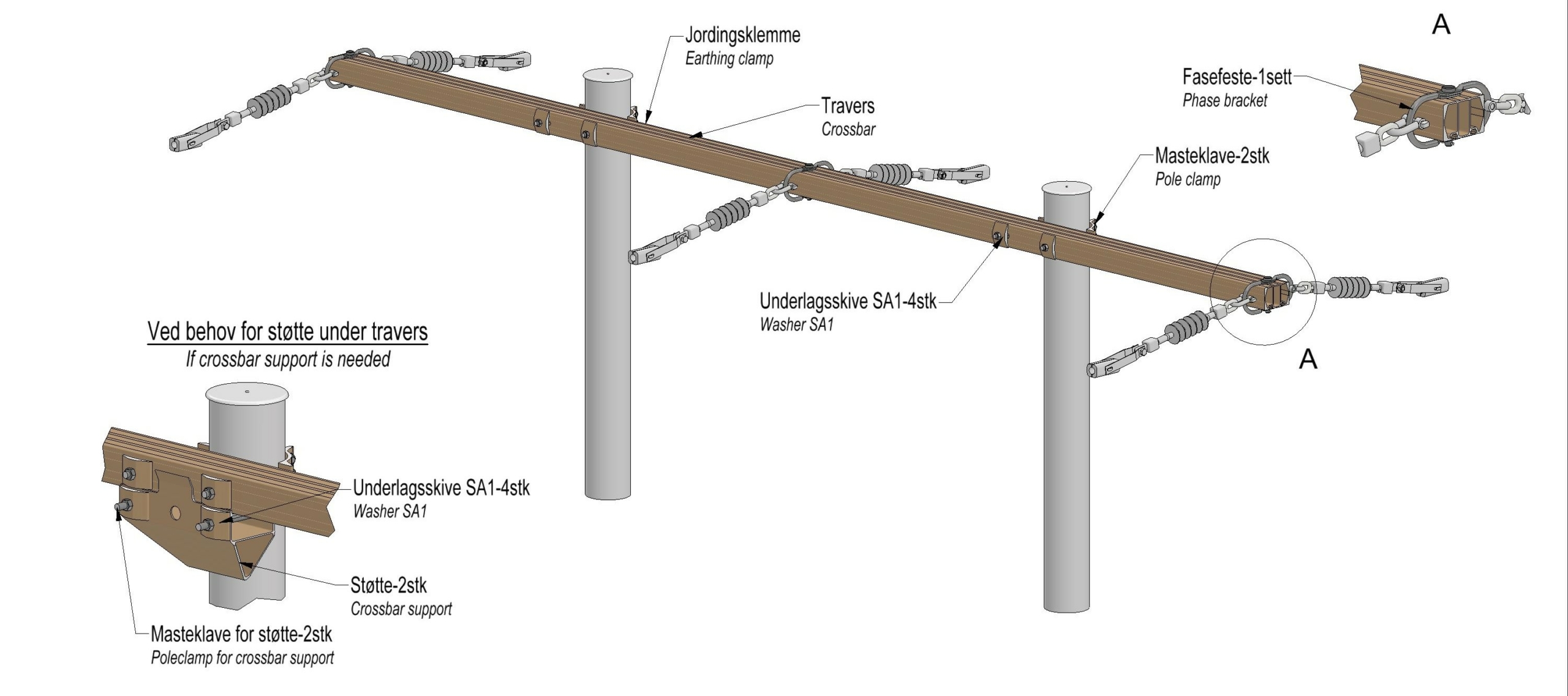

Anch. crossbar TF22S
Anchoring crossbar for one-sided connection. 2-pole.

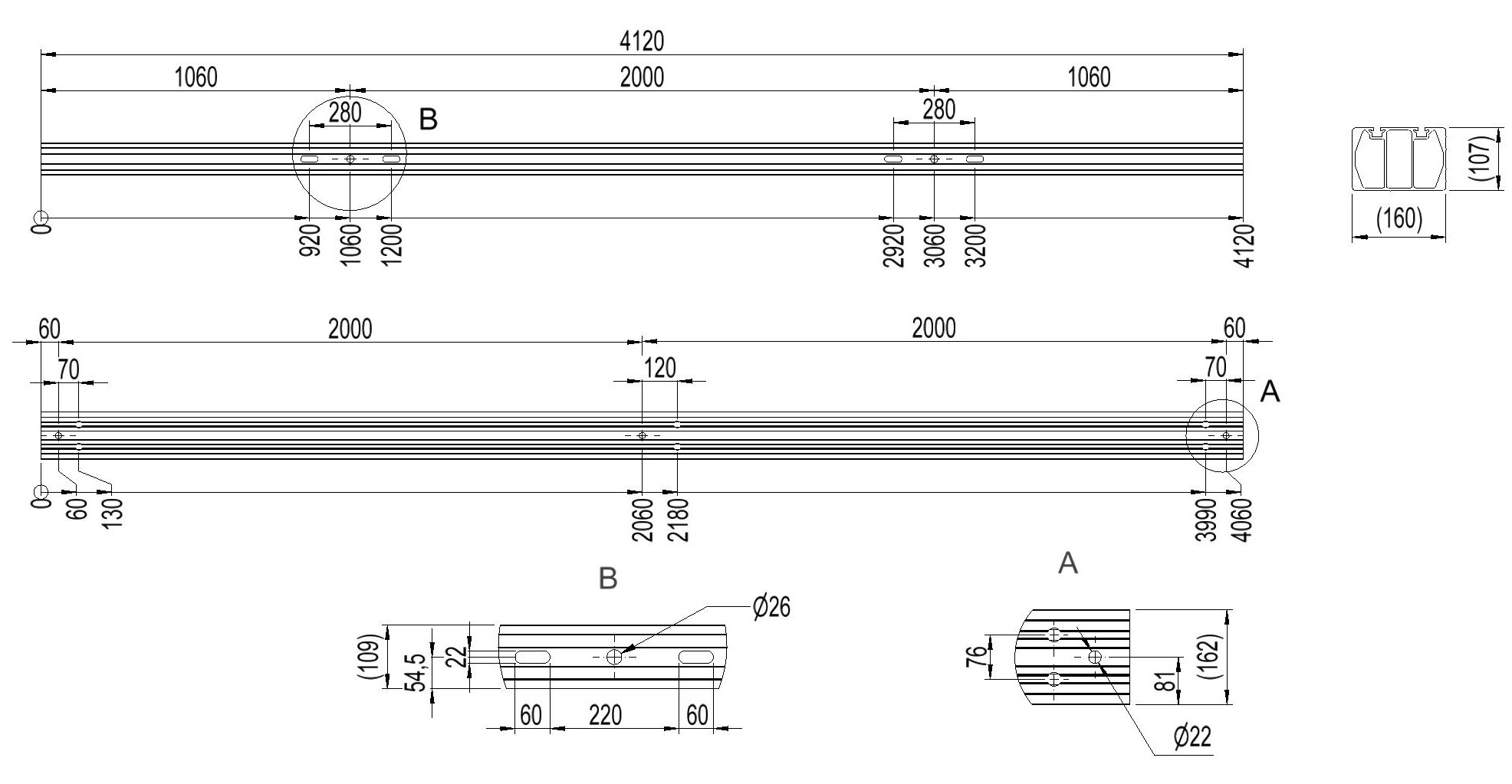

Pole distance 2m, phase distanse 2m.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Crossarm type | H/A-pole |
| Pole distance | 2m |
| Phase distance | 2m |
| Pole fastening | 280mm-single poleclamp, Bolt |
| Crossbar profile | P3 (107×160) |
Related products
-
Insolator bracket PF107
2836834Insolator bracket for crossbars 107x160mm. With fasteners.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -
Phase bracket B107T
2836863Phase stirrup bracket two-sided anchor. Suits crossbar P3, width 107. Unit set of 3.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -
Earthing clamp J10
2836836Earthing clamp M10. Fits all crossbars with M10 profile tracks. For all crossbars except cable cross bars.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -

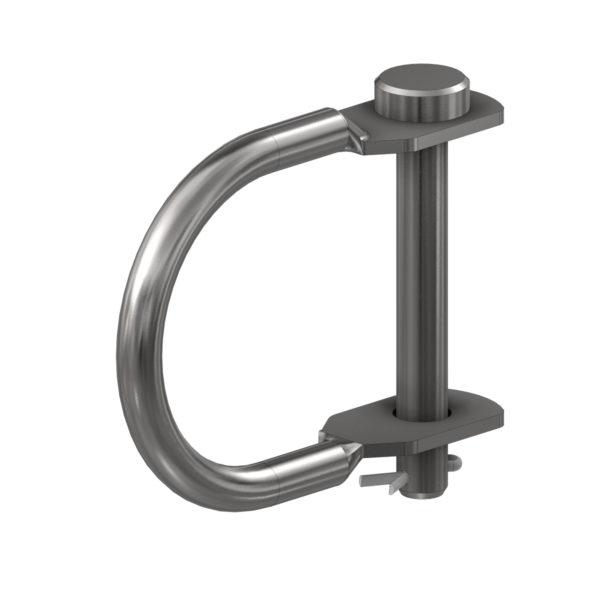

Phase bracket B107E
