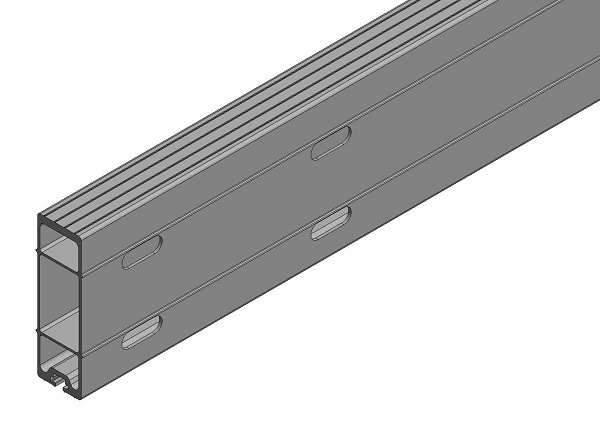

Crossbar T3-5050D-5S

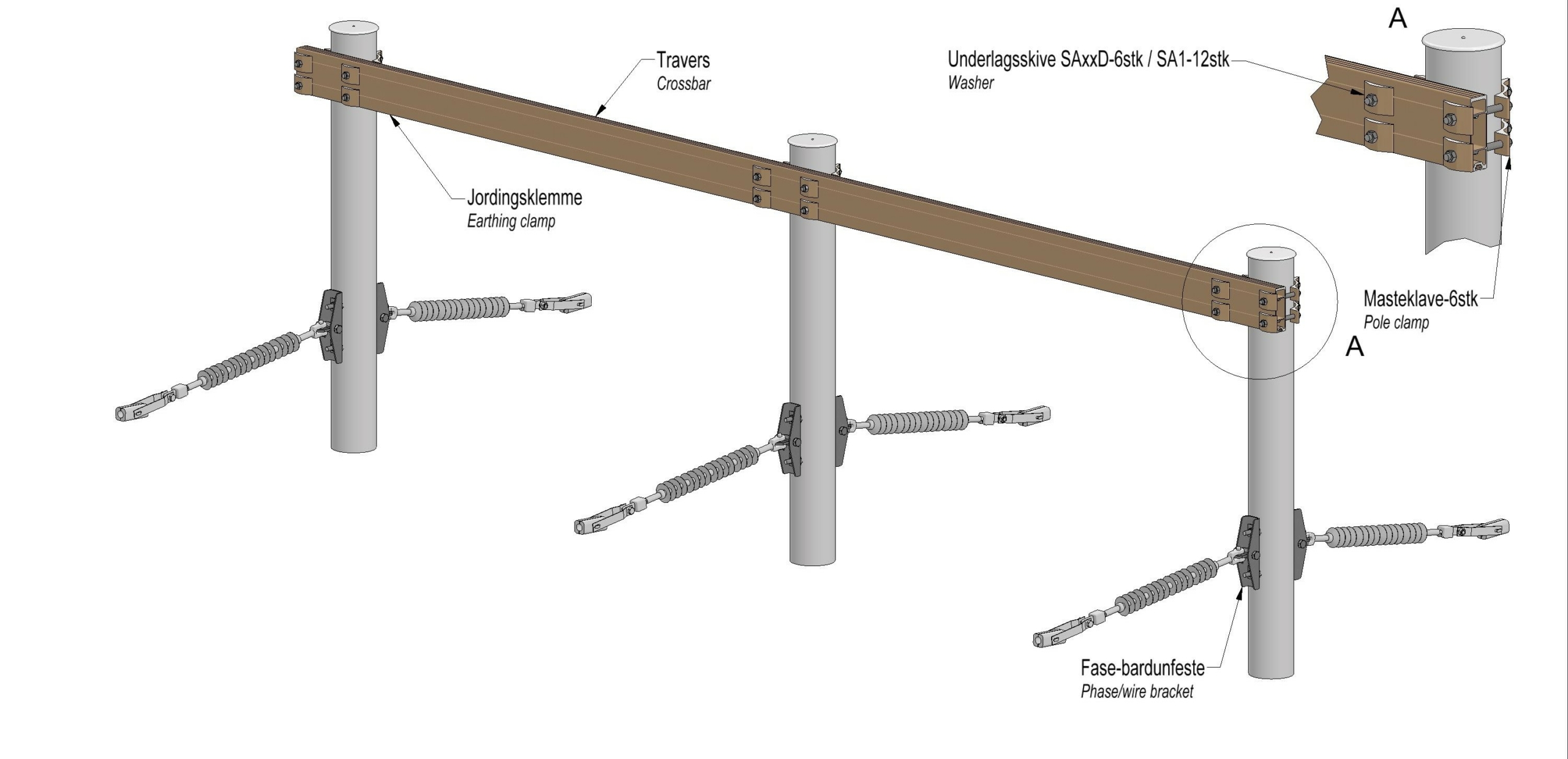

Crossbar for pole top (3E/3A).

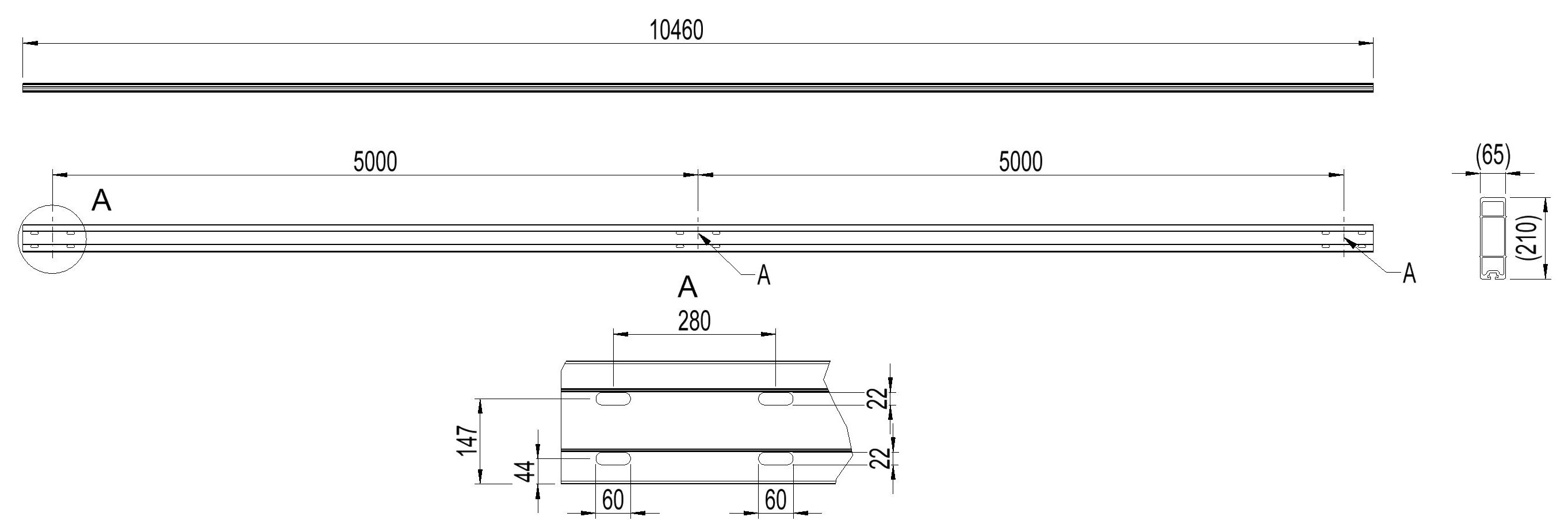

Pole distance 5m, phase distance 5m
Twin pole clamp. Oblong hole distance 280mm.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Crossarm type | Triple pole |
| Pole distance | 5m |
| Phase distance | 5m |
| Pole fastening | 280mm-double pole clamp |
| Crossbar profile | P5 (65×210) |
Related products
-

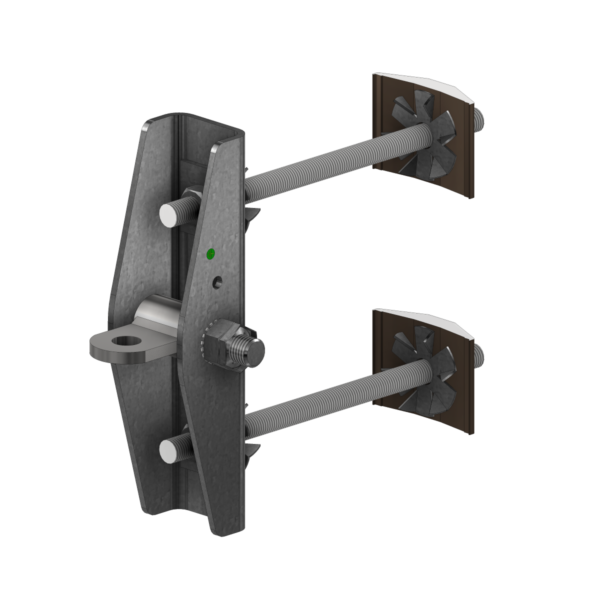

Phase/wire bracket FFE160
