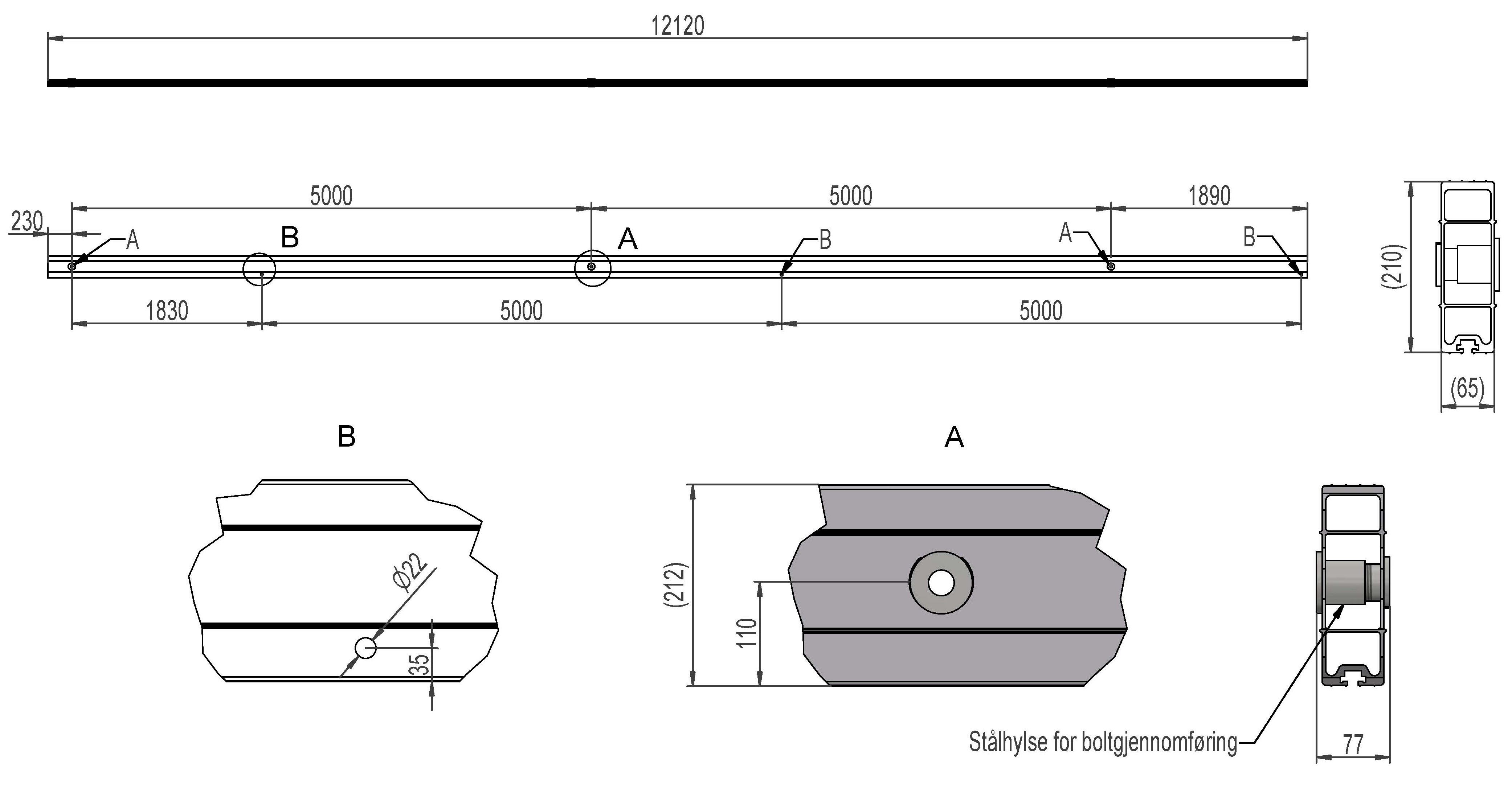

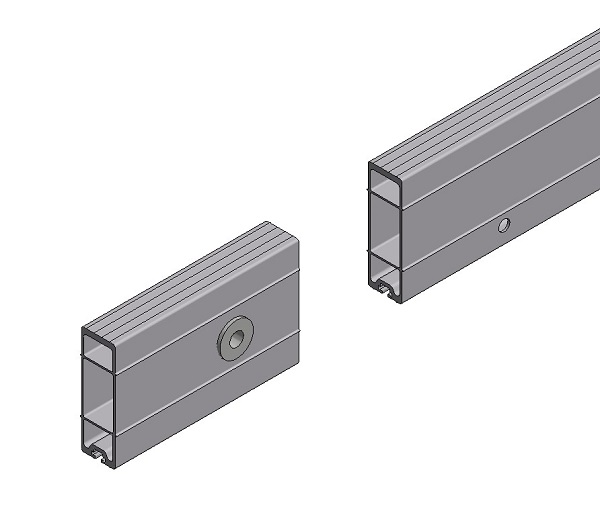

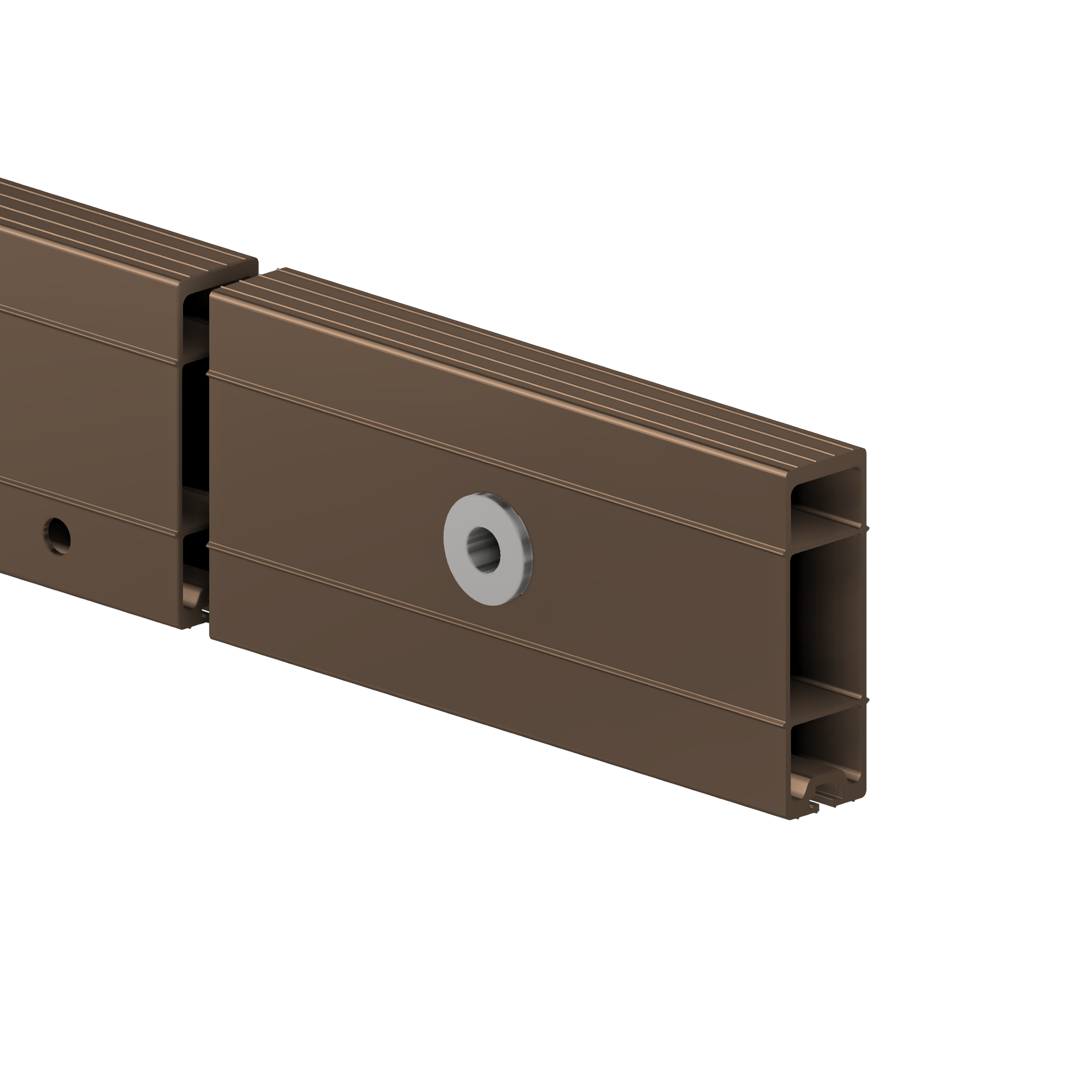

Crossbar T3OE-5050BH-5S
Crossbar for face wire loop (3E/3A).

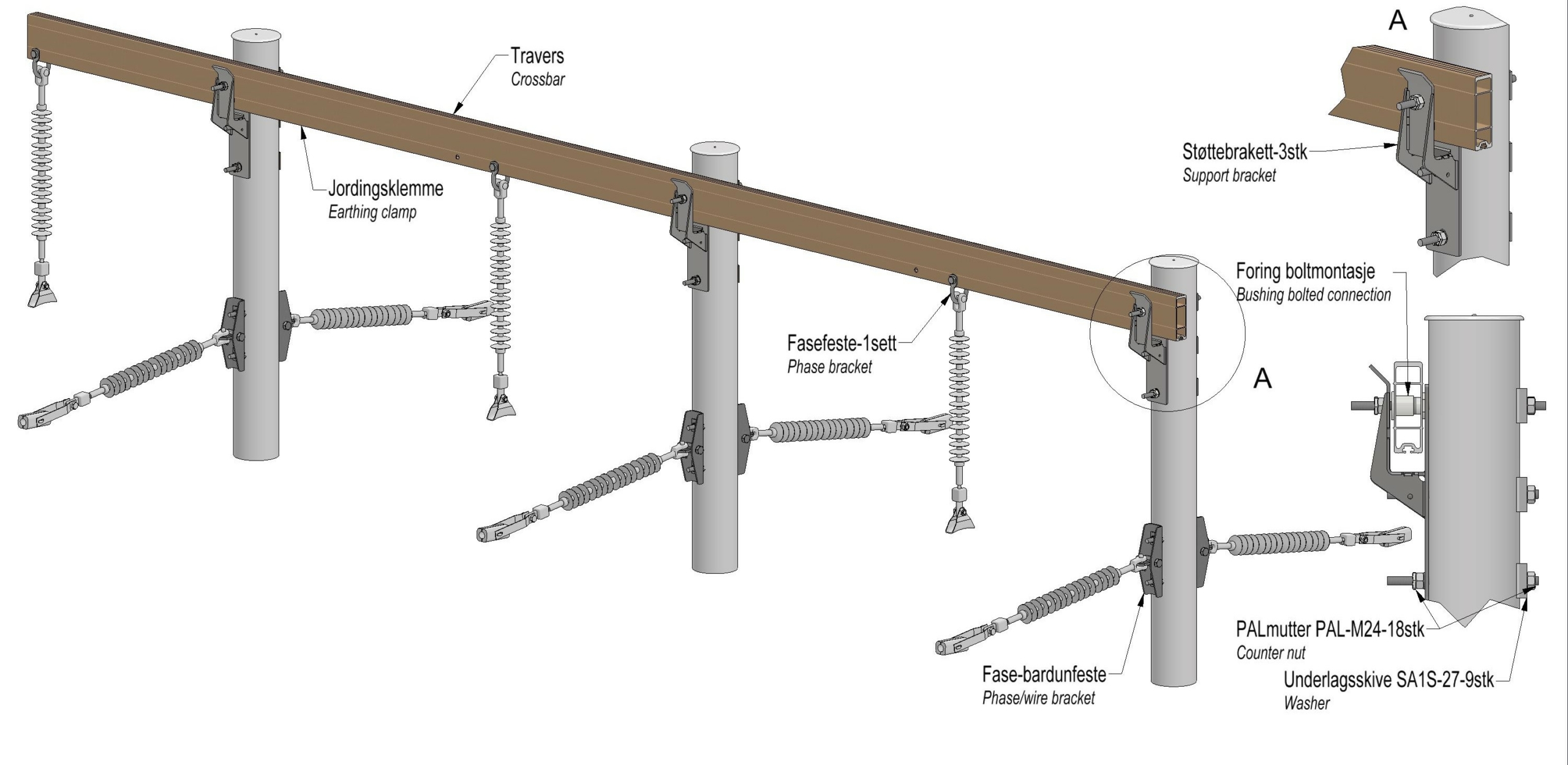

Pole distance 5m, phase distance 5m. Must always be used with support.
Bolted connection M24.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Material-2 | Steel galvanised |
| Crossarm type | Triple pole |
| Pole distance | 5m |
| Phase distance | 5m |
| Pole fastening | Bolt with bolt sleeve |
| Crossbar profile | P5 (65×210) |
