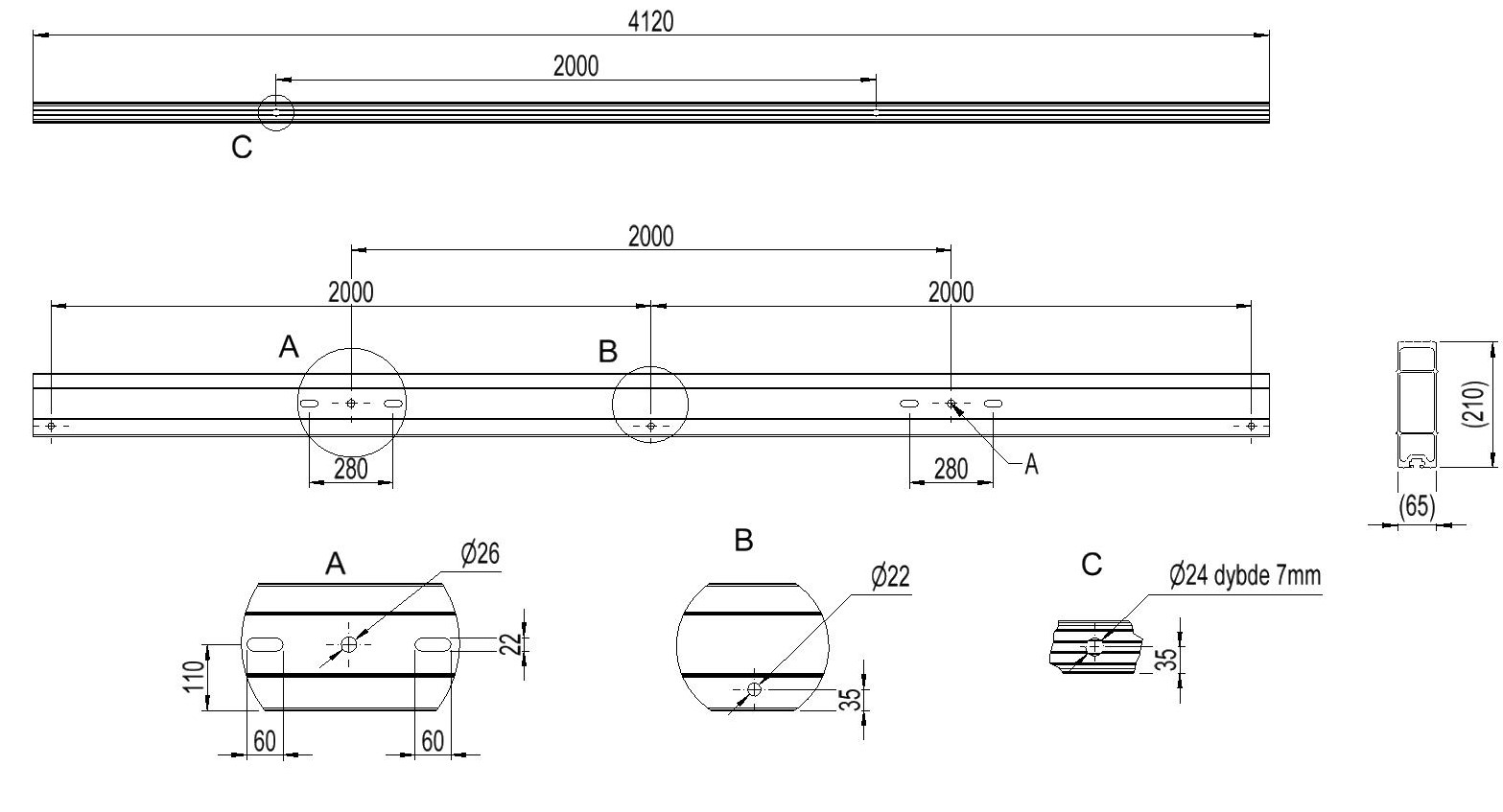

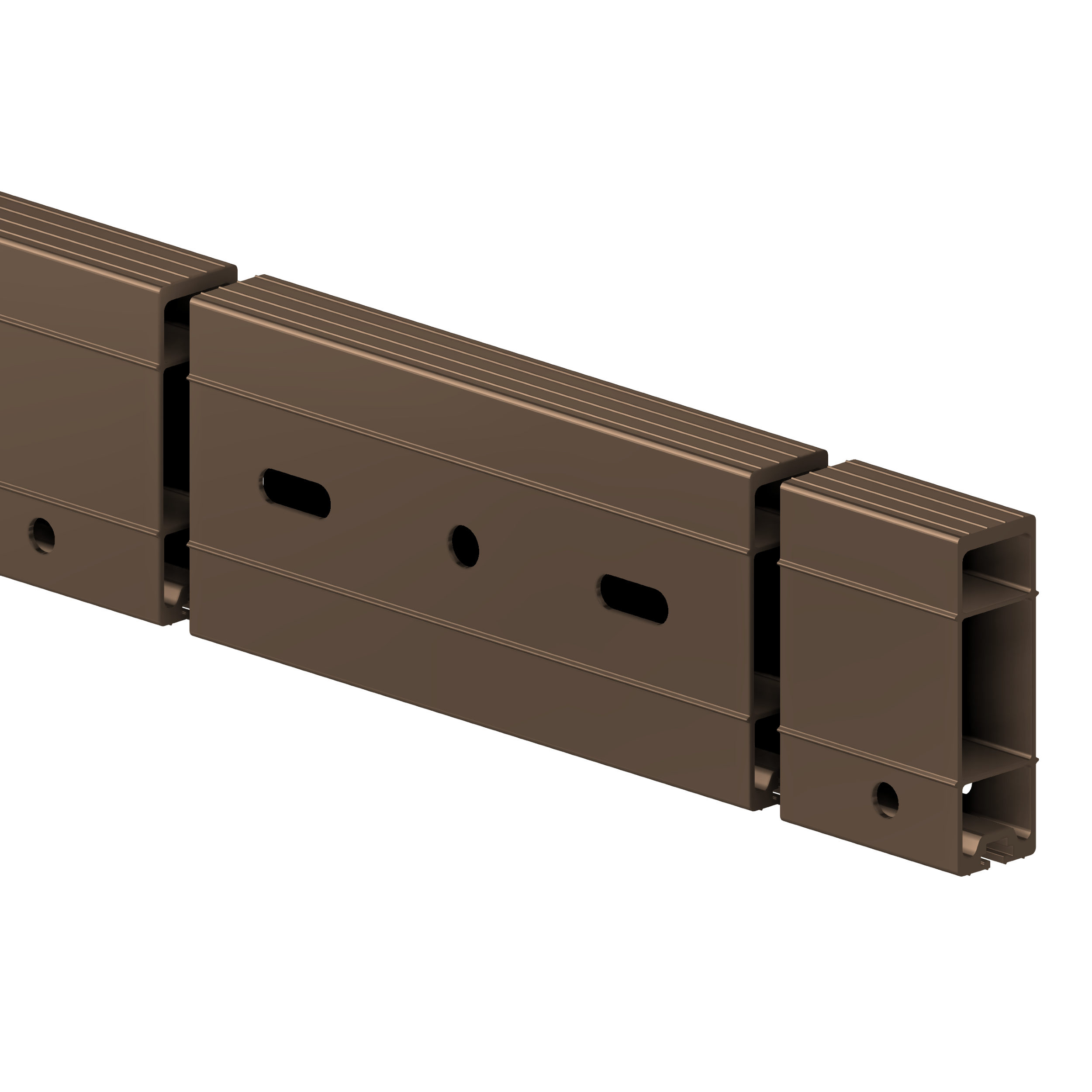

Load-bearing crossbar T22-5S

SKU: 2836897

EAN: 7070695002149 Weight: 35.5kg Unit: PSC

Load-bearing crossbar. 2-pole.
Pole distance 2m, phase distanse 2m.

Product Added to Quote Successfully. - View Quote ›

Download documents:

Dimensions FDV / Data sheet Brochure EPD Equipment listA

Additional information

Material	Aluminium, anodised-brown
Crossarm type	H/A-pole
Pole distance	2m
Phase distance	2m
Pole fastening	280mm-single poleclamp, Bolt
Crossbar profile	P5 (65×210)

Phase bracket BH65
2836730Phase stirrup bracket. For crossbar P4, P5, width 65. Unit set of 3.
Product Added to Quote Successfully.
View Quote
Legg i innkjøpsliste
Earthing clamp J10
2836836Earthing clamp M10. Fits all crossbars with M10 profile tracks. For all crossbars except cable cross bars.
Product Added to Quote Successfully.
View Quote
Legg i innkjøpsliste
Washer SA1S
2836894Washer length 80mm. Hole 1xØ22mm. Important: always to be used to the crossbar together with pole clamp.
Product Added to Quote Successfully.
View Quote
Legg i innkjøpsliste
Phase bracket FH65
2836740Phase bracket. For crossbar P4, P5, width 65. Unit set of 3.
