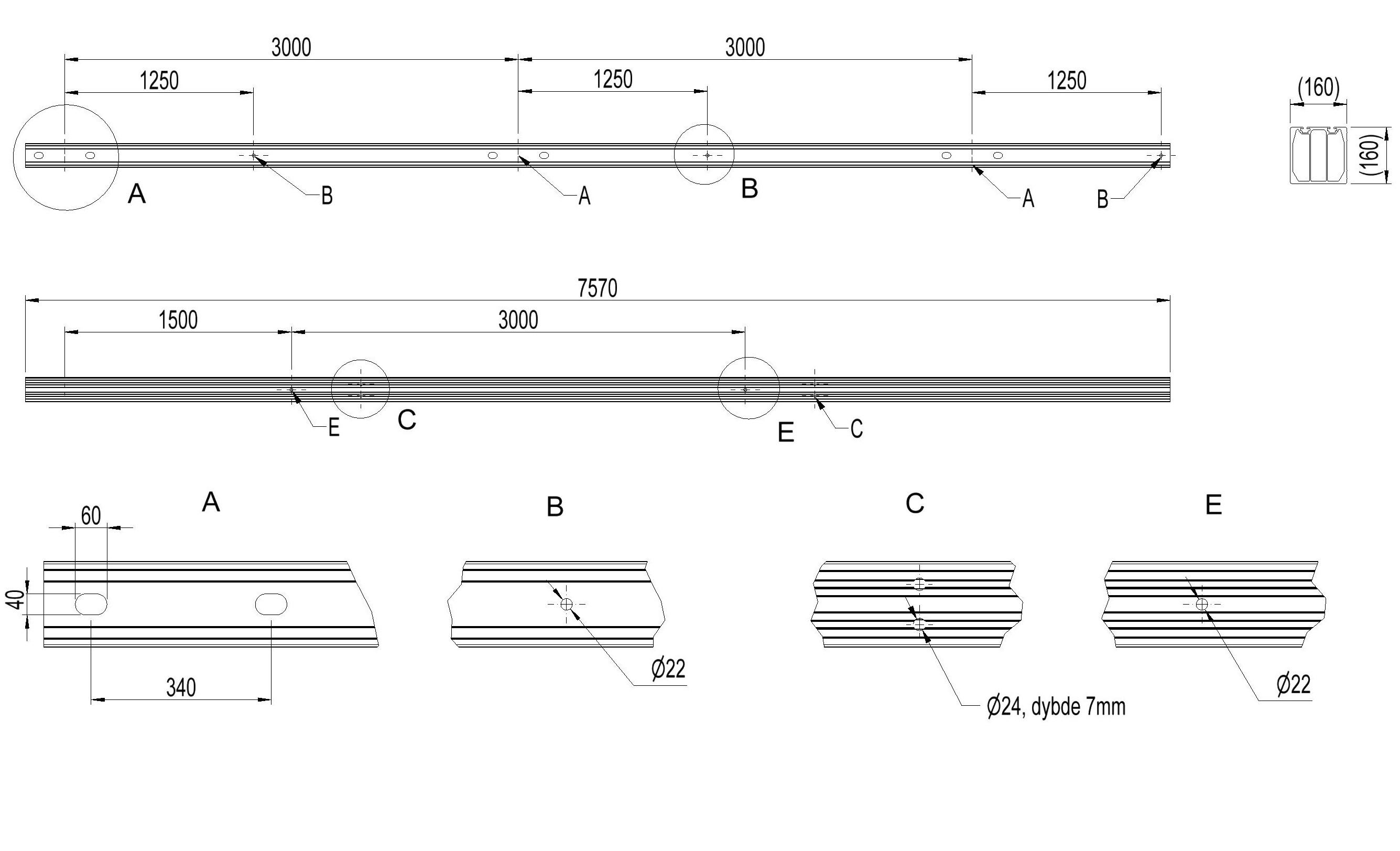

Anch. crossbar T3AOE-3030-34-8S
Anchoring crossbar for two-sided connection. 3-pole.
For overhead shield wires and face wire loop.
Pole distance 3m, phase distanse 3m.
Oblong hole distance 340mm.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Crossarm type | Triple pole |
| Pole distance | 3m |
| Phase distance | 3m |
| Pole fastening | 340mm-single pole clamp |

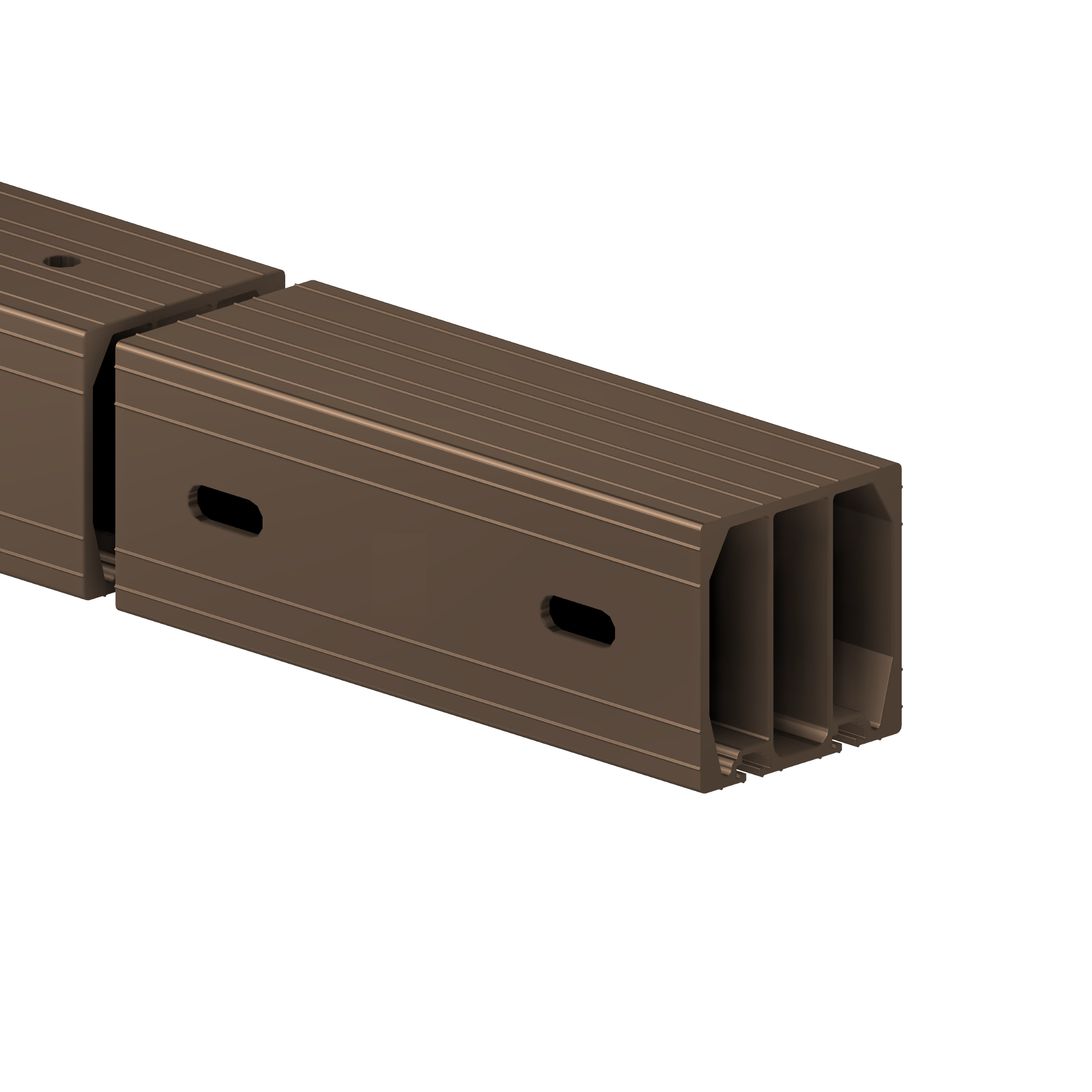

| Crossbar profile | P8 (160×160) |
