Anch. crossbar T3AOE-4545-34-8S
SKU: 2836456
EAN: 7070695008141 Weight: 190kg Unit: PSC

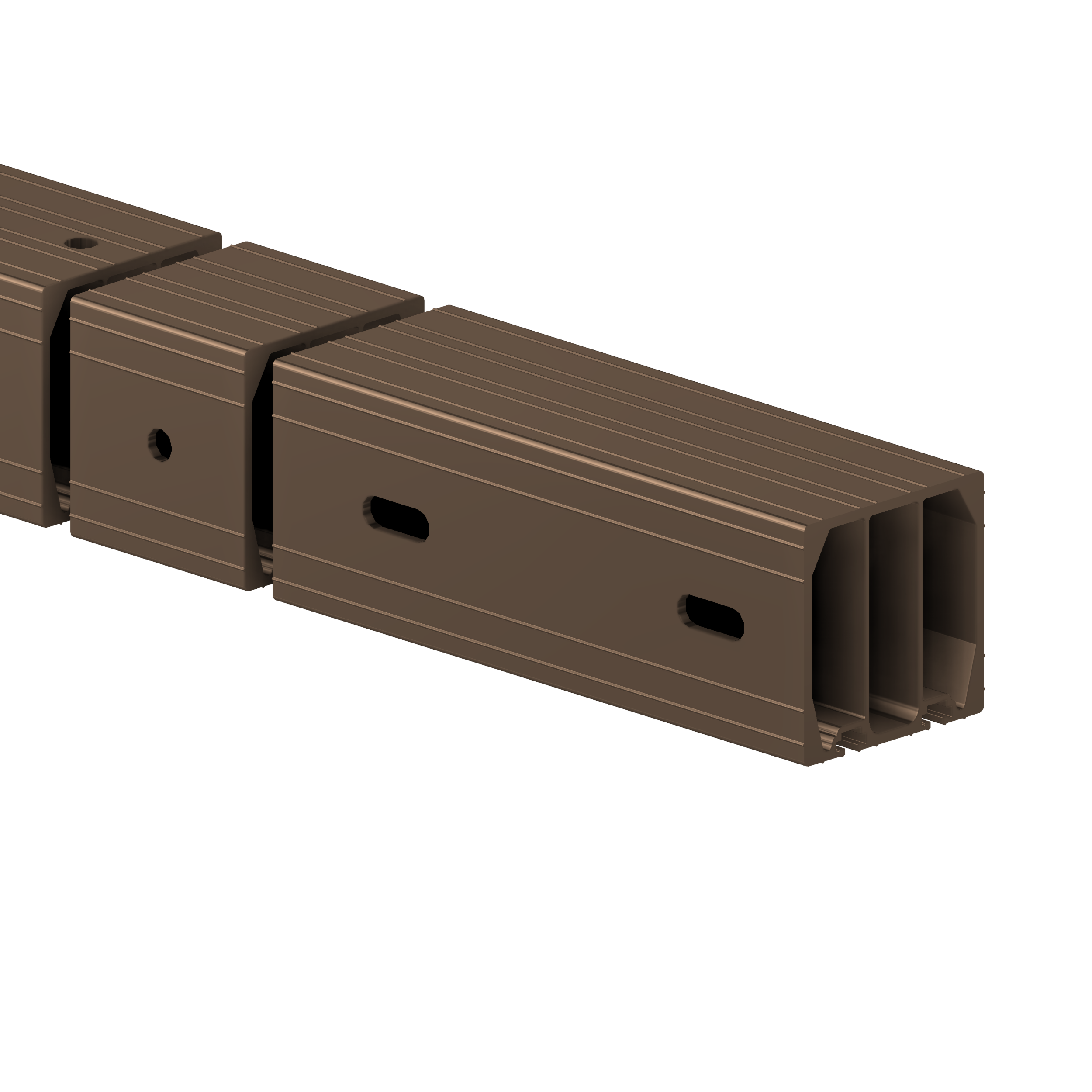

Anchoring crossbar for two-sided connection. 3-pole.
For overhead shield wires and face wire loop.

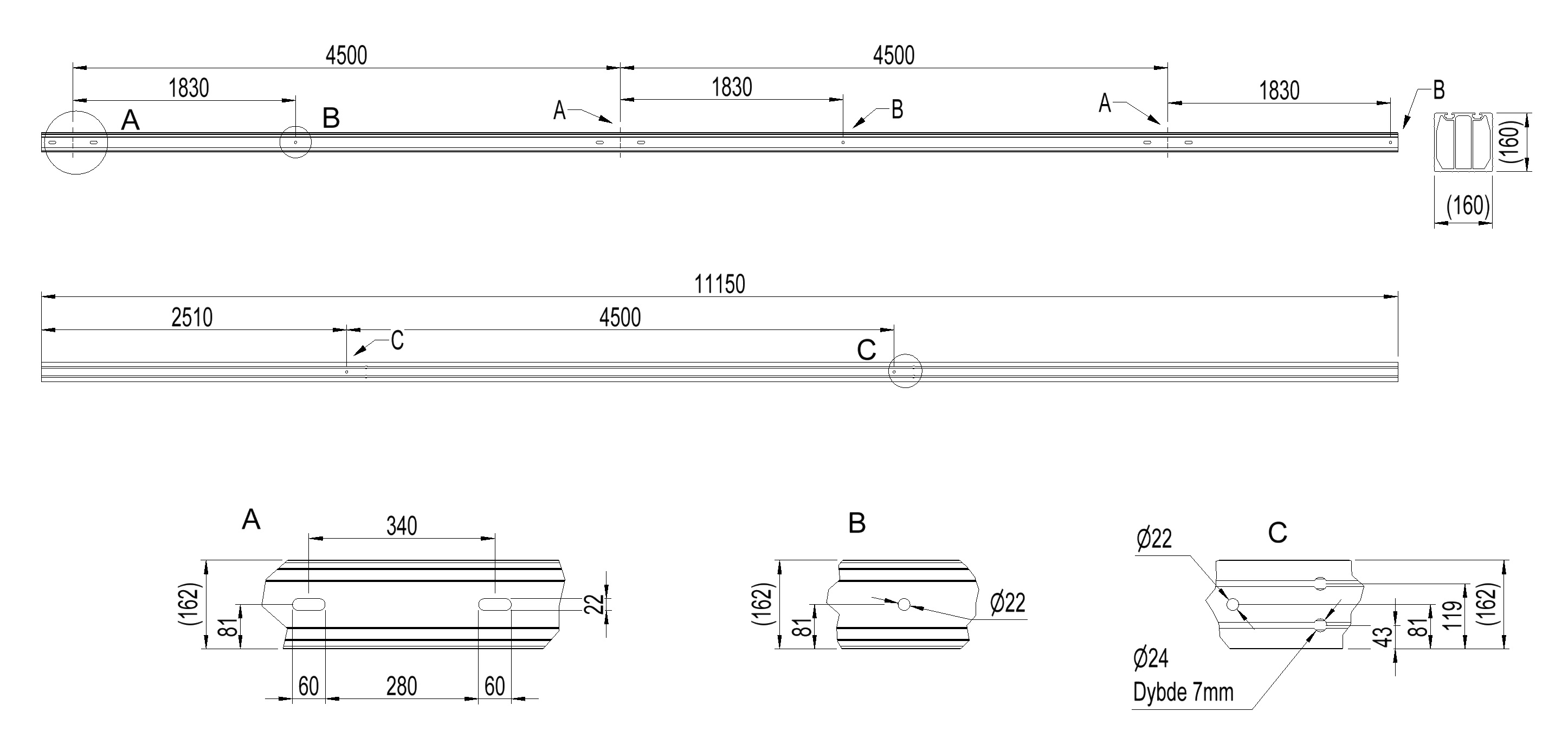

Pole distance 4,5m, phase distanse 4,5m.
Oblong hole distance 340mm.
Additional information
Material | Aluminium, anodised-brown |
---|---|
Crossarm type | Triple pole |
Pole distance | 4,5m |
Phase distance | 4,5m |
Pole fastening | 340mm-single pole clamp |
Crossbar profile | P8 (160×160) |
