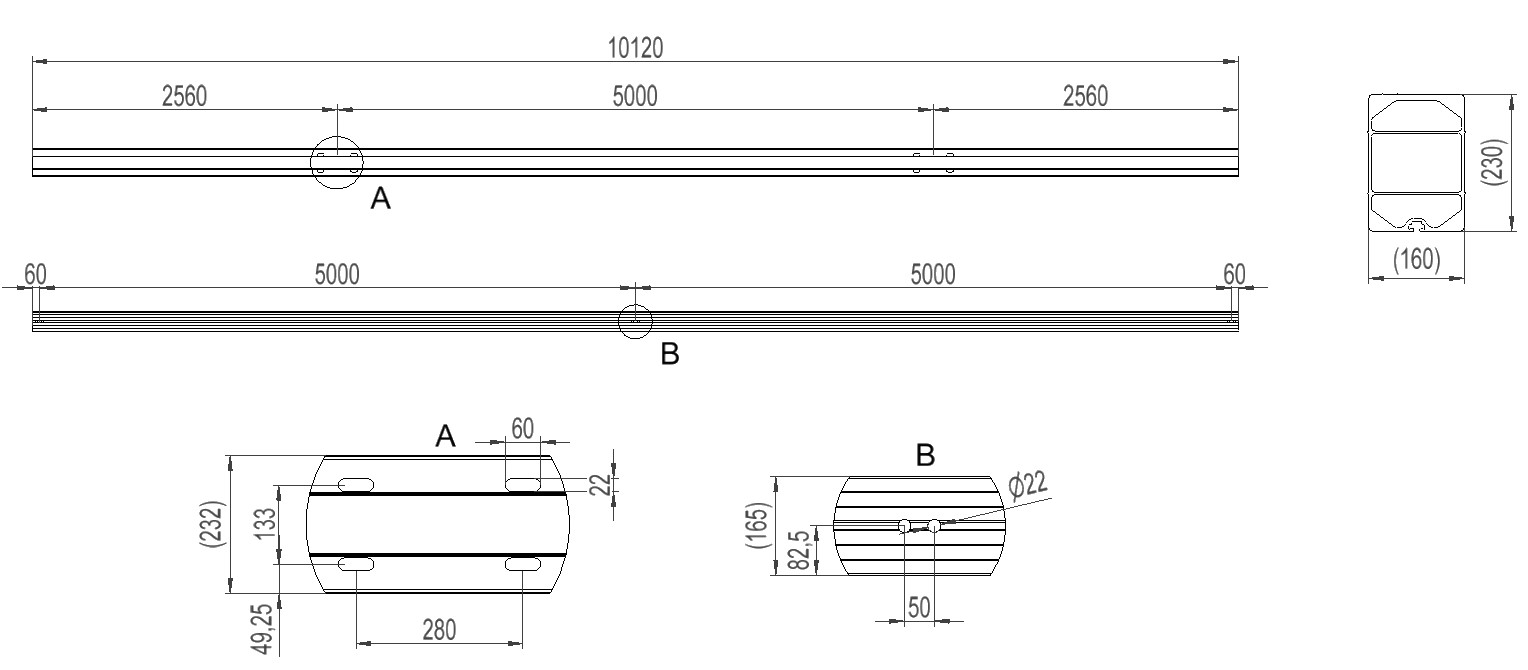

Anch. crossbar TAS5050D-7S
Anchoring crossbar for two-sided connection. 2-pole.
Pole distance 5m, phase distanse 5m.
Twin pole clamp. Oblong hole distance 280mm.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Crossarm type | H/A-pole |
| Pole distance | 5m |
| Phase distance | 5m |
| Pole fastening | 280mm-double pole clamp |
| Crossbar profile | P7 (160×230) |
Related products
-
Washer SA211D
2836480Washer length 211mm. Hole 2xØ22mm. Important: always to be used to the crossbar together with pole clamp.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -

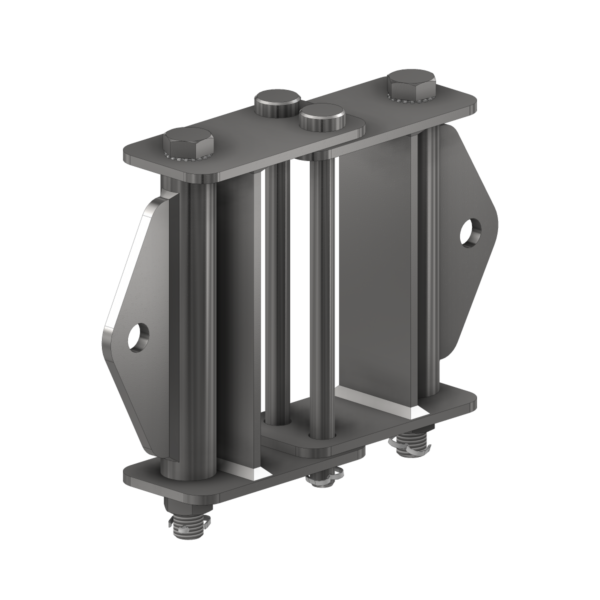

Phase bracket F230T
