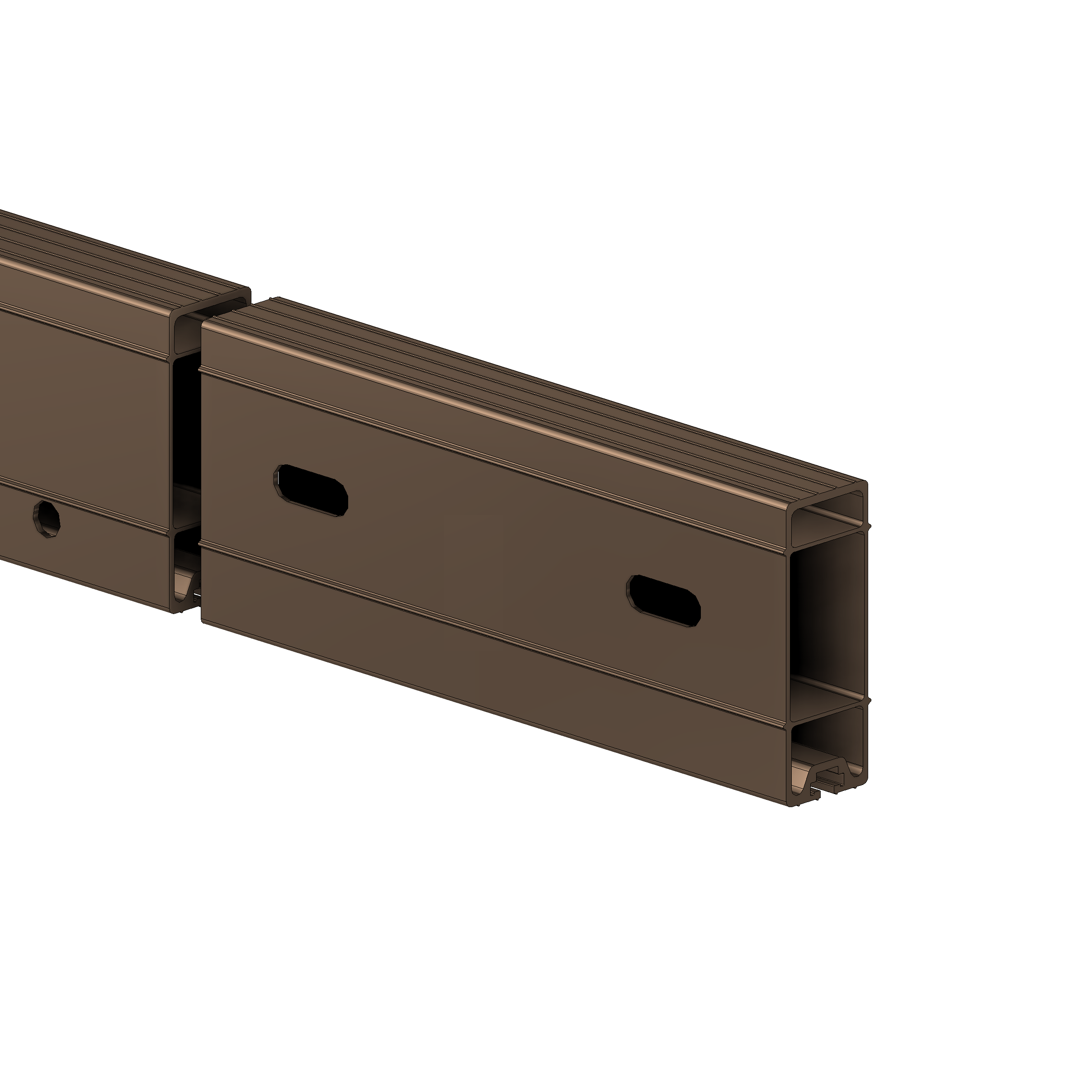

Crossbar T3OE-3030-42-4S
Crossbar for face wire loop (3E/3A).
Pole distance 3m, phase distance 3m
Oblong hole distance 420mm.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Crossarm type | Triple pole |
| Pole distance | 3m |
| Phase distance | 3m |
| Pole fastening | 420mm-single pole clamp |
| Crossbar profile | P4 (65×180) |
