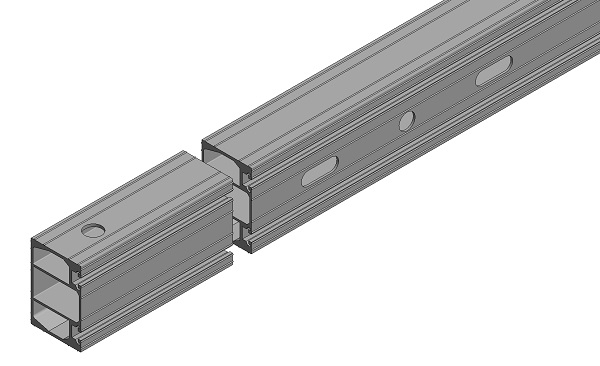

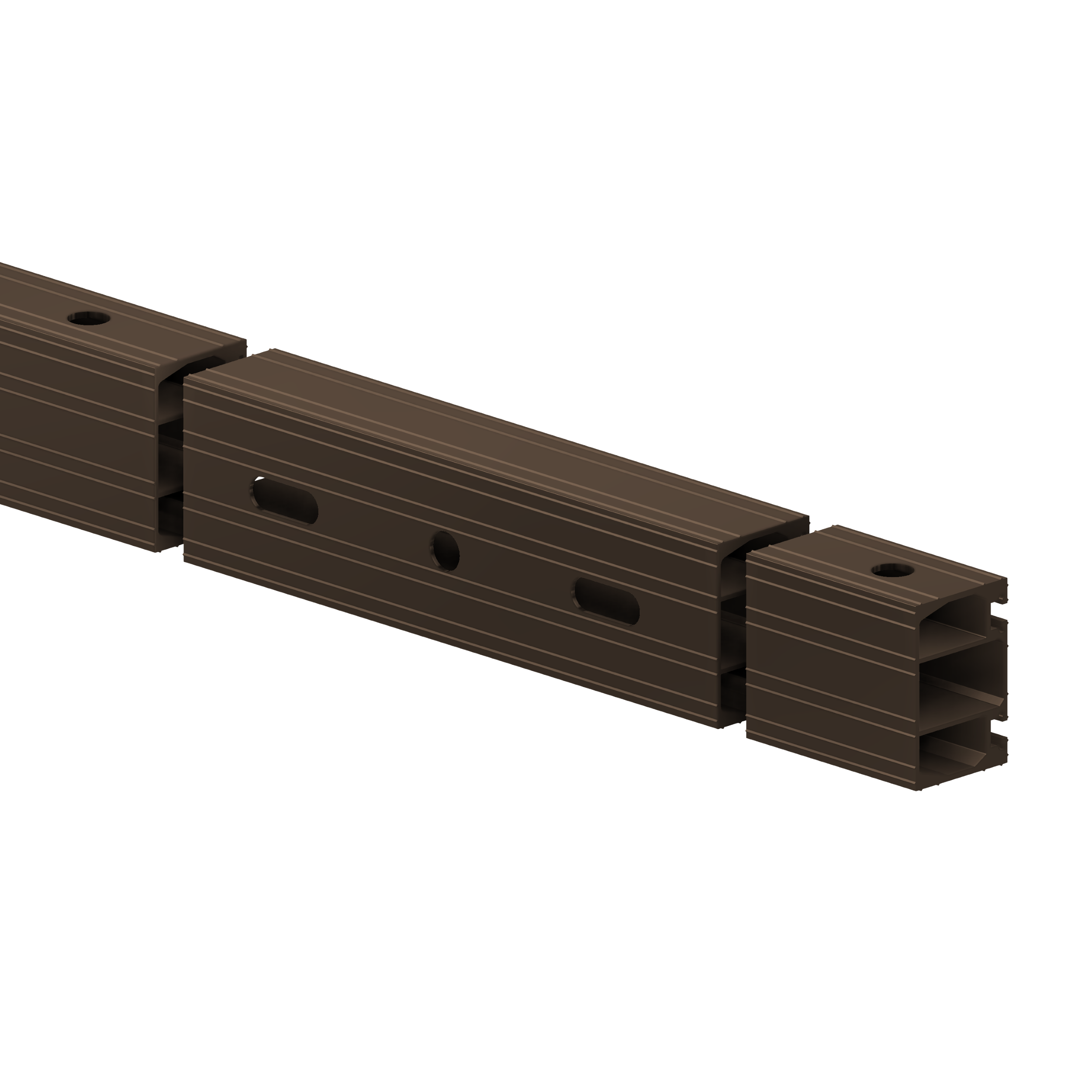

Load-bearing crossbar TP22-2S
Load-bearing crossbar. 2-pole.
Pole distance 2m, phase distanse 2m.
For insulator pin.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Crossarm type | H/A-pole |

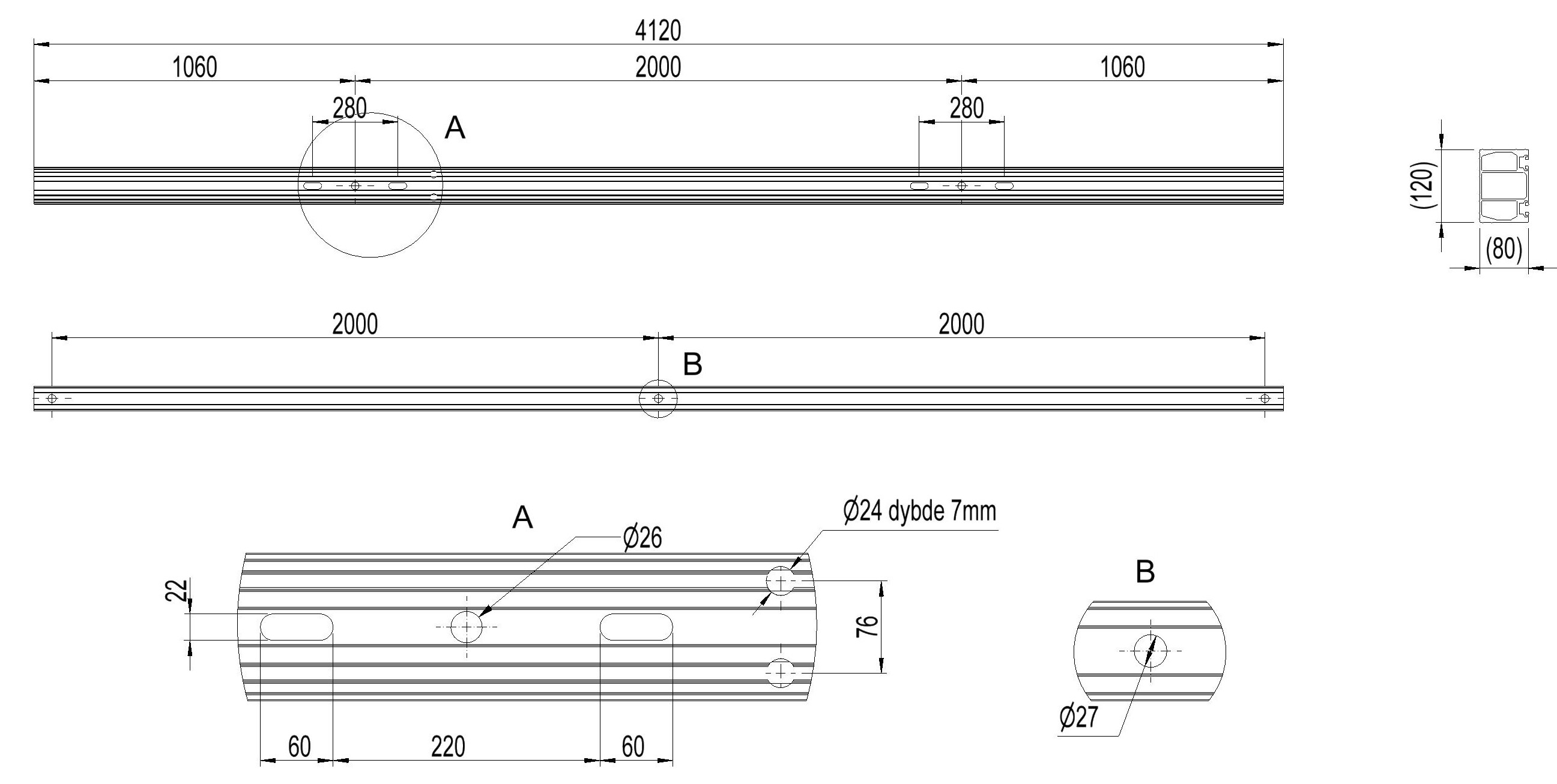

| Pole distance | 2m |
| Phase distance | 2m |
| Pole fastening | 280mm-single poleclamp, Bolt |
| Crossbar profile | P2 (80×120) |
