Pole clamp MKS2530

SKU: 2836690

EAN: 7070695006833 Weight: 1.1kg Unit: PSC

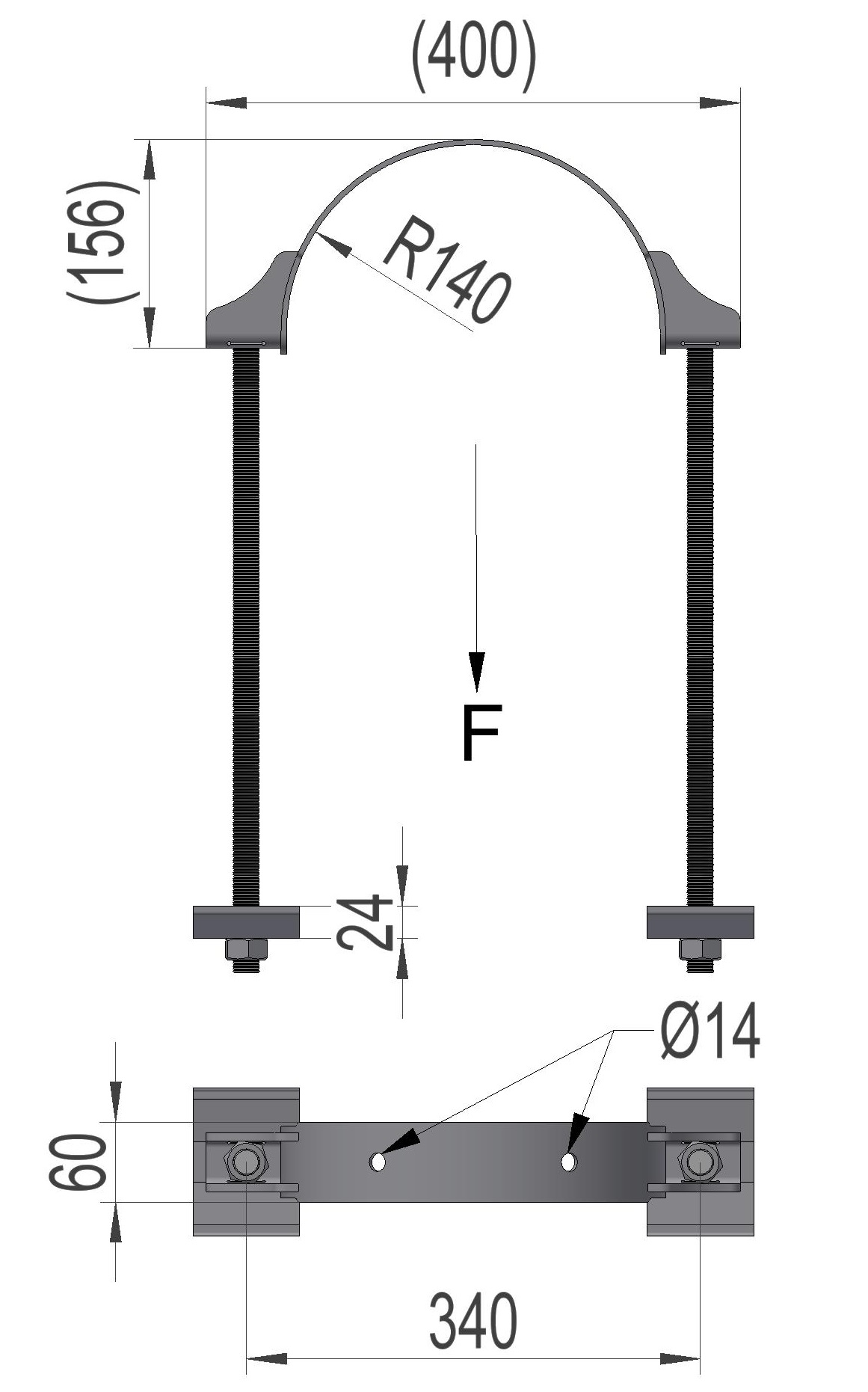

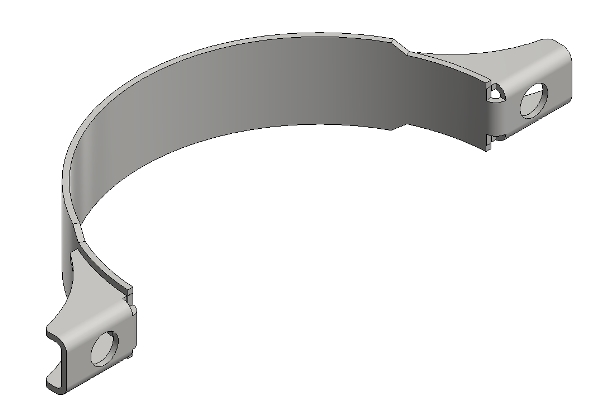

Steel pole clamp for pole diameter Ø250-300mm.
Hot-dip galvanzied. For boltsize M20.
Bolts, nuts and washers not included.
Selection table with regards to bolt length, crossbar type and pole diameter is on our website.

Product Added to Quote Successfully. - View Quote ›

Download documents:

Dimensions FDV / Data sheet Brochure Brochure

Additional information

Material	Steel galvanised

Stud bolt M20 GB250
2836620Stud bolt M20x250 with nuts.
Product Added to Quote Successfully.
View Quote
Legg i innkjøpsliste
Washer SA175D
2836477Washer length 175mm. Hole 2xØ22mm. Important: always to be used to the crossbar together with pole clamp.
Product Added to Quote Successfully.
View Quote
Legg i innkjøpsliste
Washer SA160DS
2836828Washer length 143mm. Hole 2xØ22mm. Important: always to be used to the crossbar together with pole clamp.
Product Added to Quote Successfully.
View Quote
Legg i innkjøpsliste
Stud bolt M20 GB400
2836623Stud bolt M20x400 with nuts.
Product Added to Quote Successfully.
View Quote
Legg i innkjøpsliste
Washer SA160S
2836829Washer length 143mm. Hole 1xØ22mm. Important: always to be used to the crossbar together with pole clamp.
Product Added to Quote Successfully.
View Quote
Legg i innkjøpsliste
Stud bolt M20 GB500
2836625Stud bolt M20x500 with nuts.
Product Added to Quote Successfully.
View Quote
Legg i innkjøpsliste
Stud bolt M20 GB450
2836624Stud bolt M20x450 with nuts.
Product Added to Quote Successfully.
View Quote
Legg i innkjøpsliste
Washer SA241D
2836481Washer length 241mm. Hole 2xØ22mm. Important: always to be used to the crossbar together with pole clamp.
Product Added to Quote Successfully.
View Quote
Legg i innkjøpsliste
Washer SA146D
2836479Washer length 146mm. Hole 2xØ22mm. Important: always to be used to the crossbar together with pole clamp.
Product Added to Quote Successfully.
View Quote
Legg i innkjøpsliste
Stud bolt M20 GB350
2836622Stud bolt M20x350 with nuts.
Product Added to Quote Successfully.
View Quote
Legg i innkjøpsliste
Washer SA196D
2836478Washer length 196mm. Hole 2xØ22mm. Important: always to be used to the crossbar together with pole clamp.
Product Added to Quote Successfully.
View Quote
Legg i innkjøpsliste
Washer SA211D
2836480Washer length 211mm. Hole 2xØ22mm. Important: always to be used to the crossbar together with pole clamp.
Product Added to Quote Successfully.
View Quote
Legg i innkjøpsliste
Stud bolt M20 GB300
2836621Stud bolt M20x300 with nuts.
Product Added to Quote Successfully.
View Quote
Legg i innkjøpsliste
Washer SA1S
2836894Washer length 80mm. Hole 1xØ22mm. Important: always to be used to the crossbar together with pole clamp.
Product Added to Quote Successfully.
View Quote
Legg i innkjøpsliste
AL-Washer SA120-22
2836452Washer length 120mm. Hole 1xØ22mm. Important: always to be used to the crossbar together with pole clamp.
Product Added to Quote Successfully.
View Quote
Legg i innkjøpsliste
