Smartgrid cabinet
Showing all 84 results
-
Antenna adapter AOJ
2836351Antenna adapter from MCX-female (straight) to SMA-male (straight). L=175mm. -
Antenna adapter AOK
2836322Antenna adapter from SMA-female (straight) to MCX-male (angle). L=220mm. -
Antenna pole AFK
2836822Antenna pole 2m for wall mounting, included mounting brakets for wall. -
Antenna pole AFN
2836375Antenna pole 2m for wall mounting for external cabinet, included mounting brakets for wall. -
Antenna pole extension AFNF
2836369Antenna pole extension Included splice and 1,4m pole. -

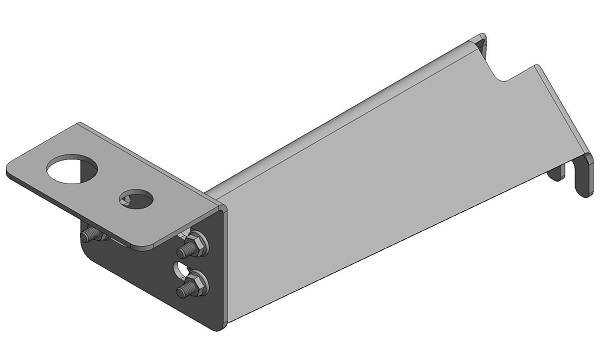

Antenna support bracket angle AS-N-AV
2851774Antenna support bracket for cable duct KAN42. -
Antenna support bracket angle AV
2836399Support bracket angle for antenna pole AFN (Ø50mm). -
Antenna support bracket AR-F
2836350Support bracket for antenna pole (Ø50mm). -
Antenna support bracket AR-KA
2836378Support bracket for antenna pole AFN (Ø50mm). Suitable for Kamstrup/Aidon-antenna. -
Antenna support bracket AR-N
2836376Support bracket for antenna pole AFN (Ø50mm). Suitable for Nuri-antenna. -
Antenna support bracket ARS2-N
2836379Support bracket for antenna pole AFN (Ø50mm). Suitable for 2xNURI-antenna. -
Antenna support bracket AS-N
2836377Support bracket for cable duct KAN42. Suitable for NURI-antenna. -
Antenna support bracket ASK2-N
2836380Support bracket with cable bracket KB. Suitable for 2xNURI-antenna. -
Bracket UNI-EFFB
2836338Bracket for circuit breaker cabinet. -
Bracket UNI-FORV
2836345For reinforcement of thin walls, up to 75mm thickness. Used together with wall mount for UNI cabinets, behind the upper part.
-
Bracket UNI-FST
2836356Mounting bracket for 3 or 2 pcs of outdoor current transformers. For mounting onto transformer lid. -
Bracket UNI-SKF
2836383Kit for mounting Smartgrid cabinet onto the side of a cable cabinet. Uses mouting point for snow marker. Wiring not included. -
Bracket UNI-STF-60
2836382Kit for mounting Smartgrid cabinet to wooden pole. For cabinet length 600mm. Adapted to cable guard KAN42 (must be ordered seperatly). Wiring not included. -
Bracket UNI-STF-75
2836373Kit for mounting Smartgrid cabinet to wooden pole. For cabinet length 750mm. Adapted to cable guard KAN42 (must be ordered seperatly). Wiring not included. -
Bracket UNI-VF
2836327Kit for mounting Smartgrid cabinet to wall, with cable protection for incoming cables.
-
Bracket UNI-VUA
2859397Kit for mounting Smartgrid cabinet to wall, without cable protection for cables.
-
Cable bracket KBSF622-E
2836308For circuit breaker cabinet. For 3 cables ø15-22 og 3 cables ø22-42. With wood screws. -
Cable inlet case BEFL
2836337Cable inlet case for circuit breaker cabinet. -
Circuit breaker cabinet UNI-EFM
2836329UNI circuit breaker cabinet for ground level placement of low voltage fuse/breaker for 230V IT-grid. Adapted to 50-100kVA transformer circuits. Includes power meter for grid monitoring. Has room for 2 pcs 100-200A circuit breakers, Neutral point overvoltage protection, fiber cable termination box and communication system
-
Circuit breaker module EBM1216
2836335Circuit breaker module 1x125A 1x160A. For UNI-Circuit breaker cabinet UNI-EFM. -
Circuit breaker module EBM125
2836331Circuit breaker module 2x125A. For UNI-Circuit breaker cabinet UNI-EFM. -
Circuit breaker module EBM160
2836332Circuit breaker module 2x160A. For UNI-Circuit breaker cabinet UNI-EFM. -
Circuit breaker module EBM1620
2836334Circuit breaker module 1x160A 1x200A. For UNI-Circuit breaker cabinet UNI-EFM. -
Circuit breaker module EBM200
2836333Circuit breaker module 2x200A. For UNI-Circuit breaker cabinet UNI-EFM. -
Connection clamp DTK2-150
2836307Connection clamp for circuit breaker cabinet. -
CT Mounting bracket UNI-FST-FL
2837434Mounting bracket for 3 or 2 outdoor current transformers. Mounting onto the flange of transformer lid to avoid disassembly of the lids bolts. -
Disconnection clamp UNI-SK2
2836352Disconnection clamp for 2 current transformers. To be used in Smartgrid cabinet. -
Disconnection clamp UNI-SK2-E
2836339Disconnection clamp for 2 current transformers. To be used in Circuit beaker cabinet. -
Disconnection clamp UNI-SK3
2836353Disconnection clamp for 3 current transformers. To be used in Smartgrid cabinet. -

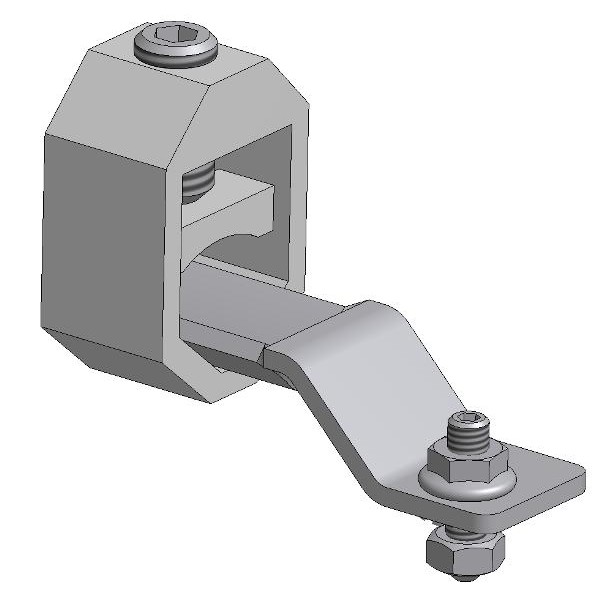

Earthing clamp JKV240
2836306Earthing clamp for circuit breaker cabinet 95-240mm2. For umbrakospanner 6. -
Earthing clamp JKV50
2836305Earthing clamp for circuit breaker cabinet 50mm2. For umbrakospanner 5. -
Feeder cable UNI-KS9
2836326Feeder cable for UNI Smartgrid cabinet. 9x2.5mm² in flexible steel hose with cable gland at both ends. Used as a connection between UNI Smartgrid cabinets and cable cabinets. -
Feeder cable UNI-LED-4-85
2836360Feeder cable for UNI Smartgrid cabinet. 8,5m long 4x2.5mm² double insulated cable in 7.5m plastic flexible conduit. Can be used up to and including 1000V. -
Feeder cable UNI-LED-65
2836325Feeder cable for UNI Smartgrid cabinet. 6,5m long 3x2.5mm² double insulated cable in 5.5m plastic flexible conduit. Can be used up to and including 1000V.
-
Feeder cable UNI-Led-85
2836330Feeder cable for UNI Smartgrid cabinet. 8,5m long 3x2.5mm² double insulated cable in 7.5m plastic flexible conduit. Can be used up to and including 1000V. -
Ground protection BEFB
2836336Ground protection for circuit breaker cabinet. -

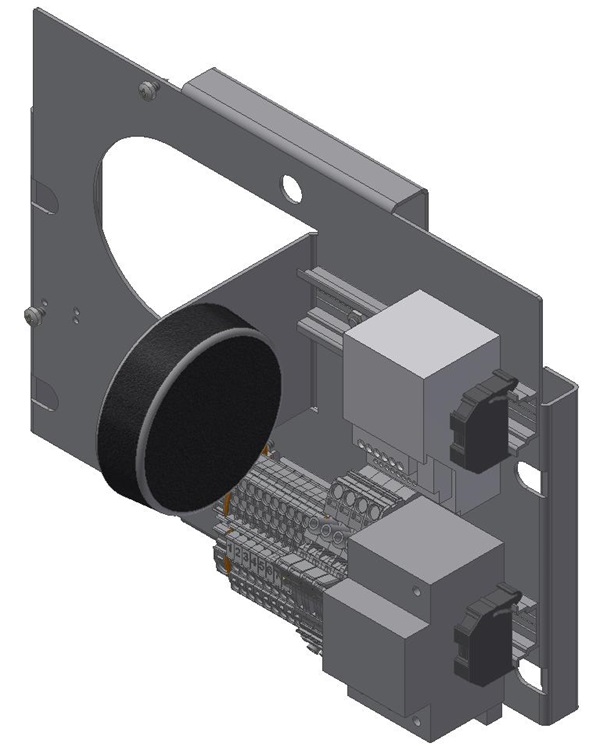

Module plate NSO-230IT-D
2857802Module plate for grid monitoring of 230V IT-grid. With Kaifa MBUS dongle, without power analyser. For installation inside transformer substations. Adapted to Kaifa smart meters. -

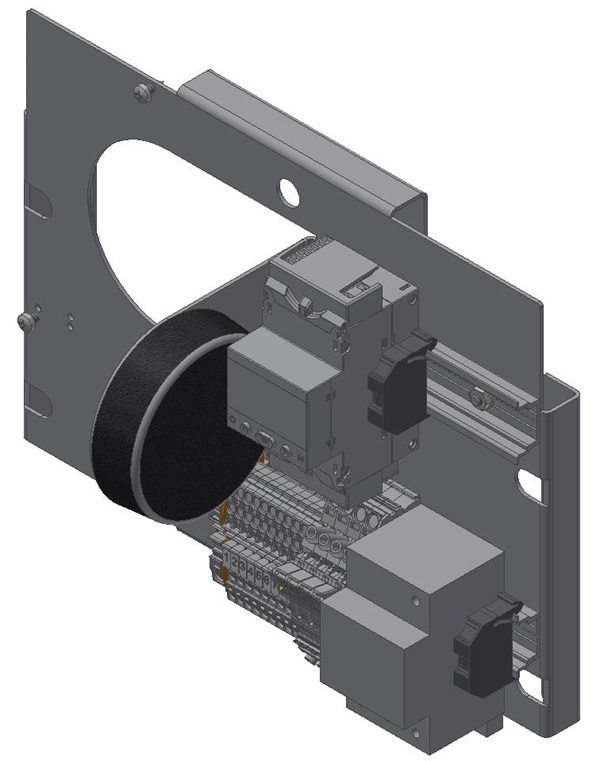

Module plate NSO-230IT-M
2836372Module plate for grid monitoring of 230V IT-grid. With power analyser, prepared for MBUS dongle. For installation inside transformer substations. Adapted to Kaifa smart meters. -

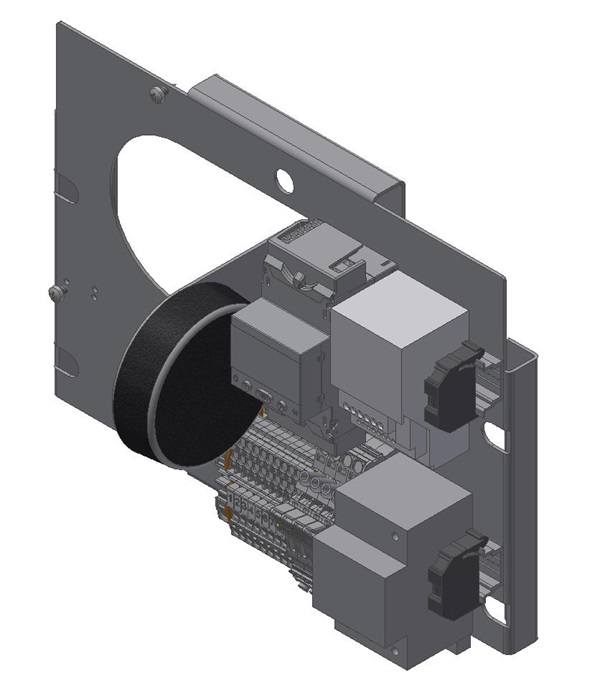

Module plate NSO-230IT-MD
2853910Module plate for grid monitoring of 230V IT-grid. With Kaifa MBUS dongle and power analyser. Detects earth faults by measuring phase-ground voltages. For installation inside transformer substations. Adapted to Kaifa smart meters. -
Mounting bar MSK35
2836324Mounting rail for electrical components inside UNI cabinets. Includes screws. Rail DIN35, length 255mm.
-

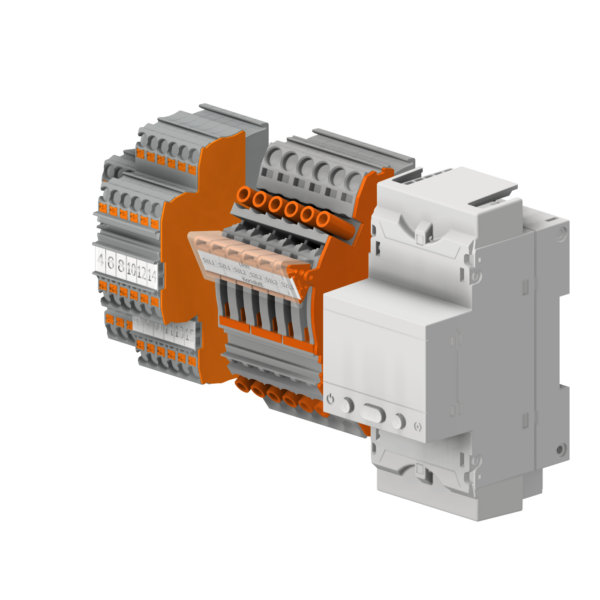

Mounting kit UNI-KIT-NSO-01
2836813Installation kit for retrofitting smartgrid monitoring in older UNI-signal cabinets. Includes power analyzer, terminal blocks, disconnect terminal block and complete wiring-kit. Wiring-kit suited for Kamstrup Omnigrid system. -

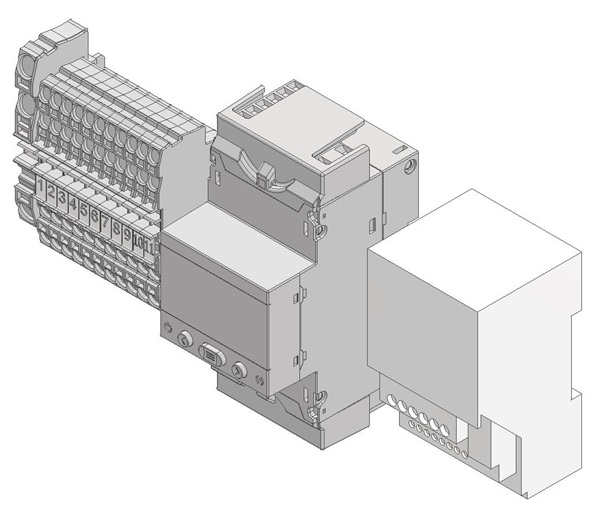

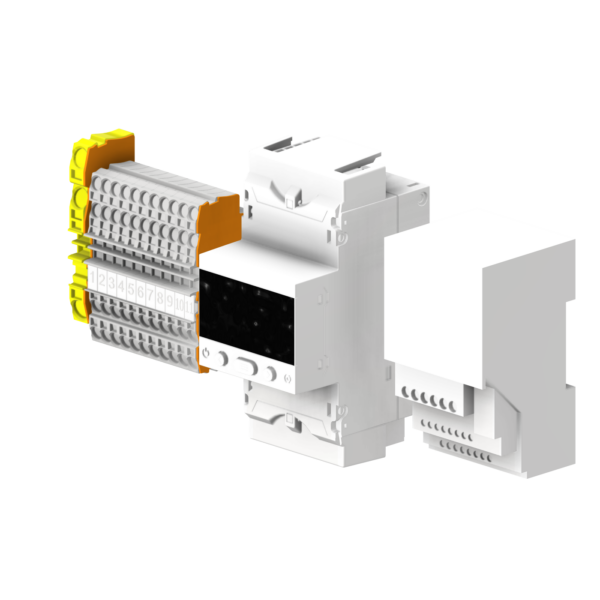

Mounting kit UNI-KIT-NSO-ND
2857857Kit for retrofitting smartgrid cabinets with power analyser and Kaifa MBUS dongle -
NSO-rail NSOKSK-MVB
2836802Connection rail for signal cabinets. For placement in transformer substations as connection point for cables to cabinet. Includes circuit breaker with high breaking capacity. -
Pole bracket UNI-SF
2857869Pole bracket for UNI-cabinets -
Smartgrid cabinet UNI-SIG-1000IT-ISO
2836370Smartgrid cabinet for network supervision 1000V IT. Detects earth fault by measuring insulation resistance. With antenna plug type MCX-m. -
Smartgrid cabinet UNI-SIG-1000IT-ISO-02
2836859Smartgrid cabinet for network supervision 1000V IT. Detects earth fault by measuring insulation resistance. With antenna plug type SMB-f. -
Smartgrid cabinet UNI-SIG-1000IT-ISO-03
2859369Smartgrid cabinet for network supervision 1000V IT, adapted to SafeMon SensorHUB. Detects earth fault by measuring insulation resistance. Protected with internal 1000V type 2 surge arrester. Antenna plug type SMA-m. Prepared for mounting of SensorHUB and associated power supply unit.
-
Smartgrid cabinet UNI-SIG-1000IT-ISO-04
2847249Smartgrid cabinet for network supervision 1000V IT, equipped with SafeMon SensorHub Mini.
Detects earth fault by measuring insulation resistance. Protected with internal 1000V type 2 surge arrester.
Antenna plug type SMA-m.
-
Smartgrid cabinet UNI-SIG-1230IT-ISO
2836371Smartgrid cabinet for network supervision of 230V and 1000V IT-grid. Detects earth faults by measuring phase-ground voltages on 230V and insulation resistance on 1000V. -
Smartgrid cabinet UNI-SIG-1230IT-ISO-02
2837489Smartgrid cabinet for network supervision of 230V and 1000V IT-grid. Detects earth faults by measuring phase-ground voltages on 230V and insulation resistance on 1000V. -
Smartgrid cabinet UNI-SIG-230IT-01
2836384Smartgrid cabinet for network supervision 230V IT-grid. With double mounting plate and antenna MCX-m. Connection for 2 CTs. -
Smartgrid cabinet UNI-SIG-230IT-03
2836385Smartgrid cabinet for network supervision 230V IT-grid. With single mounting plate and antenna SMB-f. Connection for 2 CTs. -
Smartgrid cabinet UNI-SIG-230IT-05
2836381Smartgrid cabinet for network supervision 230V IT-grid. With double mounting plate, antenna MCX-m and outside antenna terminal. Connection for 2 CTs. -
Smartgrid cabinet UNI-SIG-230IT-06
2836391Smartgrid cabinet for network supervision 230V IT-grid. With double mounting plate and antenna MCX-m. Connection for 2 CTs. Nemo D4-Le instrument. -
Smartgrid cabinet UNI-SIG-230IT-07
2837490Smartgrid cabinet for network supervision 230V IT-grid, adapted to SafeMon SensorHUB. With double mounting plate and antenna SMA-m. Connection for 3 CTs. Prepared for mounting of SensorHUB and associated power supply unit.
-
Smartgrid cabinet UNI-SIG-230IT-08
2837493Smartgrid cabinet for network supervision 230V IT-grid. Double mounting plate and antenna SMB-f. Connection for 3 CTs. -
Smartgrid cabinet UNI-SIG-230IT-09
2851778Smartgrid cabinet for network supervision 230V IT-grid. With double mounting plate and antenna MCX-m. Connection for 2 CTs. Equipped with Kaifa MBUS dongle. -
Smartgrid cabinet UNI-SIG-230IT-10
2836801Smartgrid cabinet for network supervision 230V IT-grid. Suited for Kamstrup Onigrid. Double mounting plate and antenna MCX-m. Connection for 3 CTs. -
Smartgrid cabinet UNI-SIG-230IT-12
2859394Smartgrid cabinet for network supervision 230V IT-grid, equipped with SafeMon SensorHUB Mini. With double mounting plate and antenna SMA-m. Connection for 3 CTs.
-
Smartgrid cabinet UNI-SIG-230IT-13
2847243Smartgrid cabinet for network supervision 230V IT-grid, adapted to SafeMon SensorHUB. With double mounting plate and antenna SMA-m. Connection for 2 CTs. Prepared for mounting of SensorHUB and associated power supply unit.
-
Smartgrid cabinet UNI-SIG-230TT-01
2836386Smartgrid cabinet for network supervision 230V TT-grid. With double mounting plate, antenna MCX-m and outside antenna terminal. -
Smartgrid cabinet UNI-SIG-230TT-02
2837491Smartgrid cabinet for network supervision 230V IT-grid, adapted to SafeMon SensorHUB. With earth fault relay, power analyzer with connection for 3 CTs, double mounting plate and antenna SMA-m. Prepared for mounting of SensorHUB and associated power supply unit.
-
Smartgrid cabinet UNI-SIG-400-01
2836387Smartgrid cabinet for network supervision 400V TN-S-grid. With double mounting plate and antenna MCX-m.
-
Smartgrid cabinet UNI-SIG-400-02
2836389Smartgrid cabinet for network supervision 400V IT-grid. With single mounting plate and antenna SMB-f. -
Smartgrid cabinet UNI-SIG-400-03
2837492Smartgrid cabinet for network supervision 400V NT-S-grid, adapted to SafeMon SensorHUB. With double mounting plate and antenna SMA-m. Connection for 3 CTs. Prepared for mounting of SensorHUB and associated power supply unit.
-
Smartgrid cabinet UNI-SIG-400-04
2859395Smartgrid cabinet for network supervision 400V TN-S-grid, equipped with SafeMon SensorHUB Mini. With double mounting plate and antenna SMA-m. Connection for 3 CTs.
-
Smartgrid cabinet UNI-SIG-400TN-05
2859396Smartgrid cabinet for network supervision 400V TN-S-grid. Suitable for indoor use, with two sockets and termination for e.g. lighting. With double mounting plate and MCX-m antenna with SMA-m adapter. Connection for 3 CTs.
-
Smartgrid cabinet UNI-SIG-690IT-ISO
2837488Smartgrid cabinet for network supervision 690V IT. Detects earth fault by measuring insulation resistance. -
Smartgrid module NSOSK-230IT-MVB
2836811Smartgrid module for network monitoring of 230V IT-power grid. With three-phase power analyzer and 3 flexible current transformers Ø125mm (rogowski coils). Wiring suited for use with SafeMon SensorHUB.
-
Smartgrid module NSOSK-230IT-SHM
2859392Smartgrid module for network monitoring of 230V IT-power grid. With three-phase power analyzer, 3 flexible current transformers Ø125mm (rogowski coils) and SafeMon SensorHub Mini.
-
Smartgrid module NSOSK-400TN-01
2836812Smartgrid module for network monitoring of 400V TN-power grid. With three-phase power analyzer and 3 flexible current transformers Ø125mm (rogowski coils). Wiring suited for use with SafeMon SensorHUB.
-
Smartgrid module NSOSK-400TN-SHM
2859393Smartgrid module for network monitoring of 400V TN-power grid. With three-phase power analyzer, 3 flexible current transformers Ø125mm (rogowski coils) and SafeMon SensorHub Mini.
-
Street light cabinet UNI-GAT16
2836341Street light cabinet with two contactor controlled 16A outputs, for 230V IT-grid. Cable entry in top. Equipped with 50A main breaker, 100mA earth fault circuit breaker, GSM antenna and mounting brackets for wooden pole. -
Street light cabinet UNI-GAT16-2
2837438Street light cabinet with two contactor controlled 16A outputs, for 230V IT-grid. Cable entry in bottom. Equipped with 50A main breaker, 100mA earth fault circuit breaker and GSM antenna. -
Street light cabinet UNI-GAT25
2836342Street light cabinet with two contactor controlled 25A outputs, for 230V IT-grid. Cable entry in top. Equipped with 50A main breaker, 100mA earth fault circuit breaker, GSM antenna and mounting brackets for wooden pole.
-
Street light cabinet UNI-GAT25-2
2837437Street light cabinet with two contactor controlled 25A outputs, for 230V IT-grid. Cable entry in bottom. Equipped with 50A main breaker, 100mA earth fault circuit breaker and GSM antenna. -
Street light cabinet UNI-GATB16-3
2836499Street light cabinet with three contactor controlled 16A outputs, for 230V IT-grid. Cable entry in bottom. Equipped with 50A main breaker, 100mA earth fault circuit breaker and GSM antenna. -
Street light cabinet UNI-GATB25-3
2836498Street light cabinet with three contactor controlled 25A outputs, for 230V IT-grid. Cable entry in bottom. Equipped with 50A main breaker, 100mA earth fault circuit breaker and GSM. -
Time switch-restarting device AG-GAT
2837436Additional package with time switch and restarting device. Fits streetlight cabinets 2837437, 2837438, 2836498 og 2836499. The cabinets can be delivered with or without this installed.
