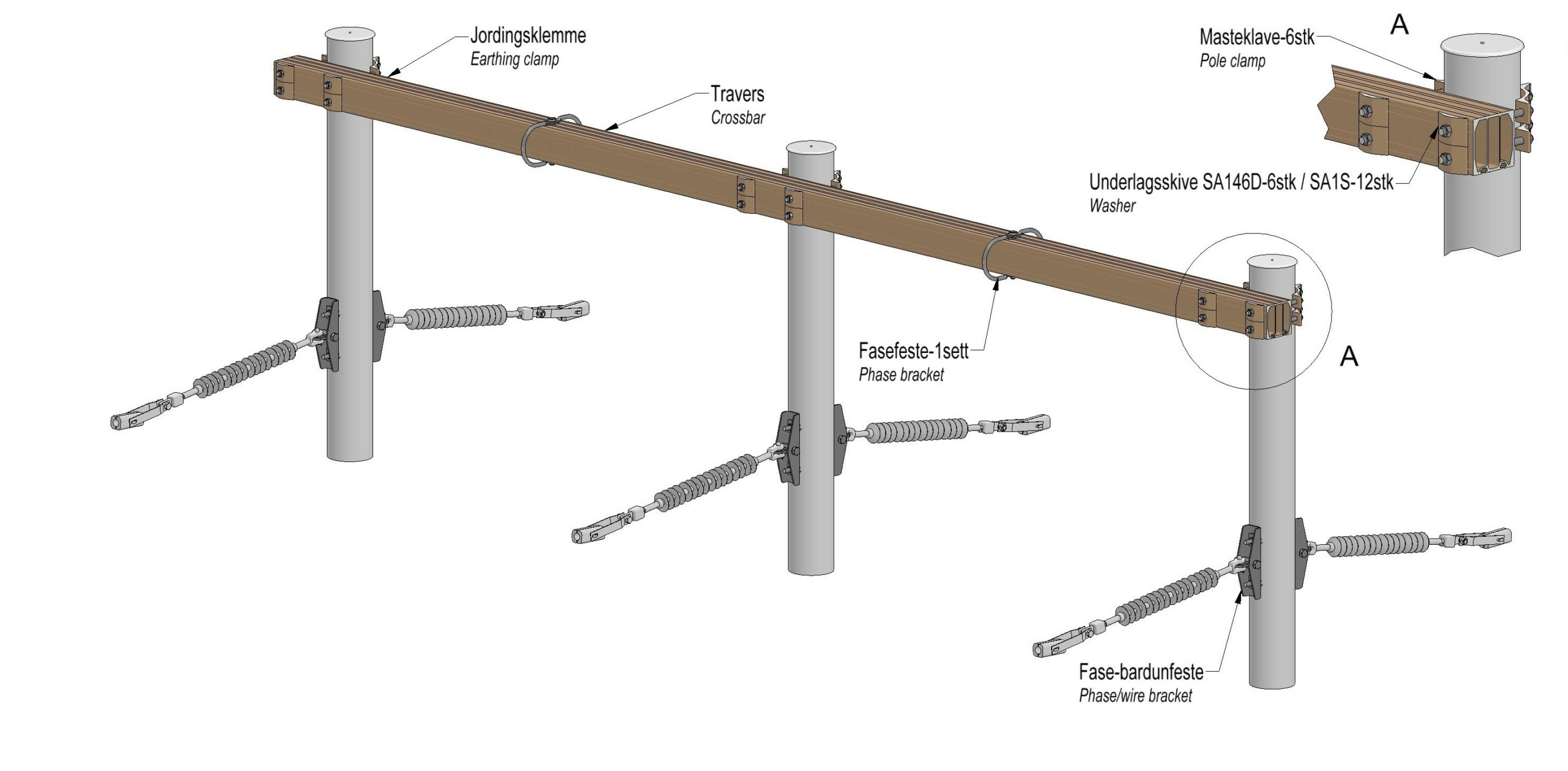

Anch. crossbar T3A-4545D-42-8S
Anchoring crossbar for two-sided connection. 3-pole.
For overhead shield wires.
Pole distance 4,5m, phase distanse 4,5m.

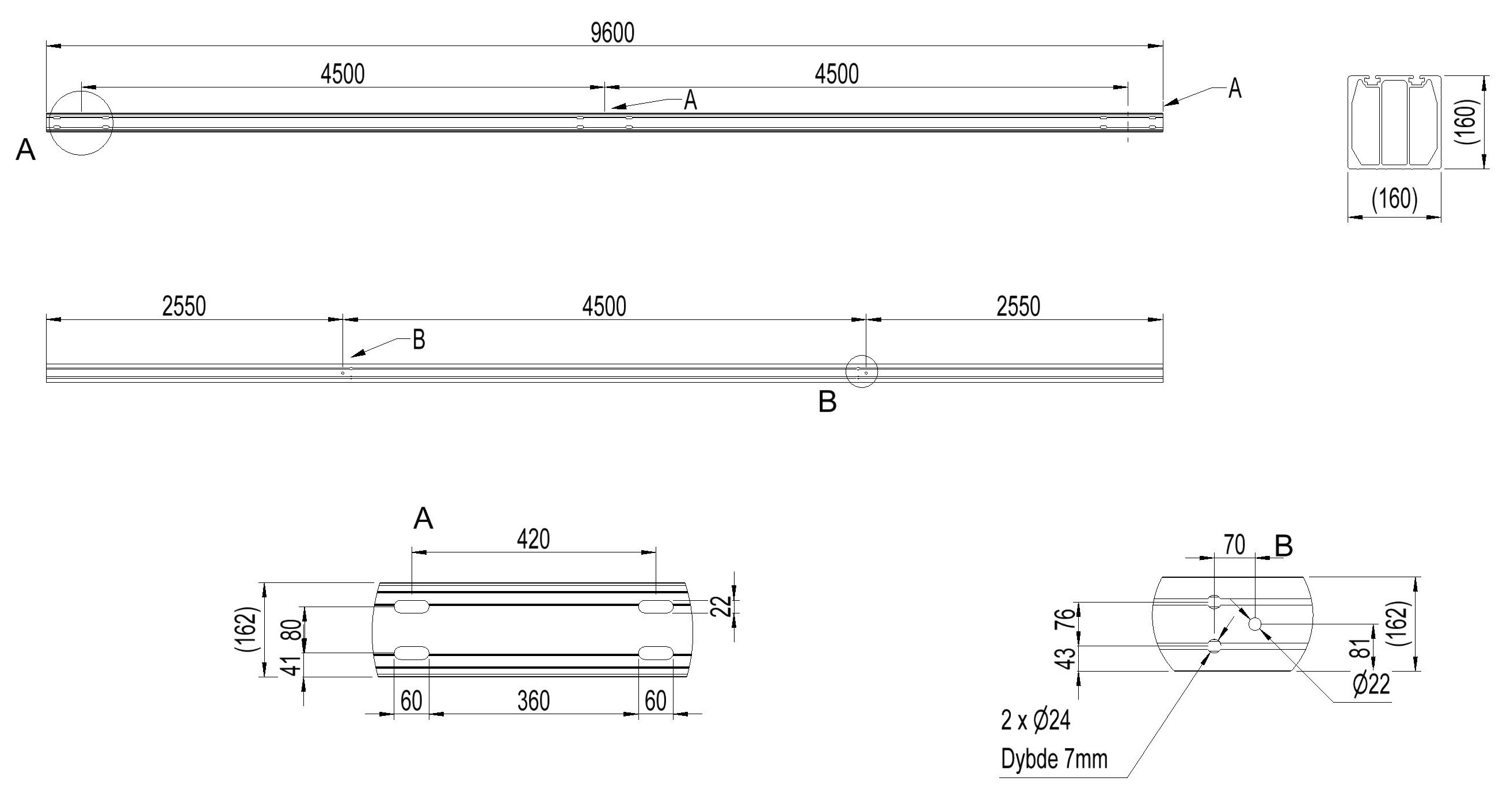

Twin pole clamp. Oblong hole distance 420mm.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Crossarm type | Triple pole |
| Pole distance | 4,5m |
| Phase distance | 4,5m |
| Pole fastening | 420mm-double pole clamp |

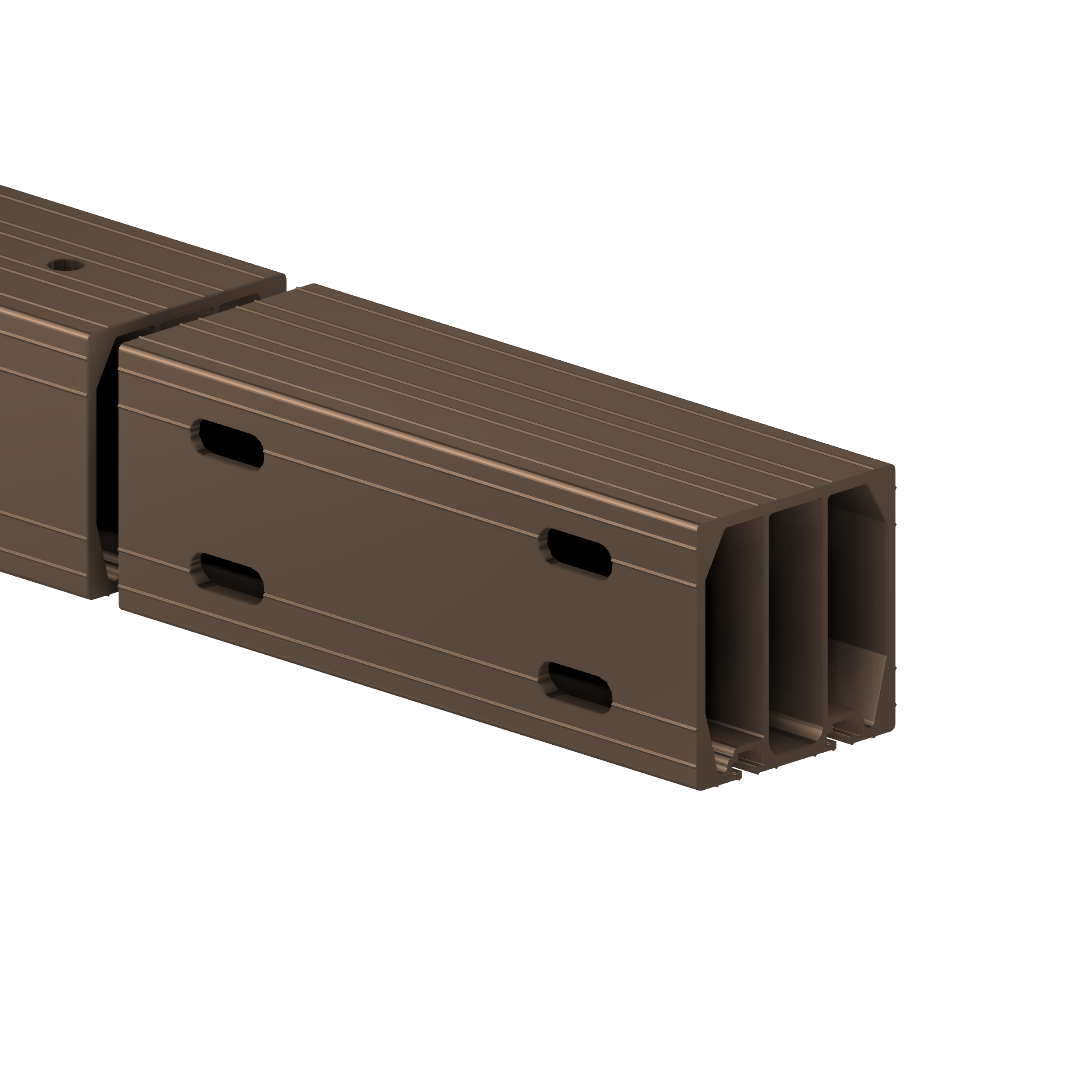

| Crossbar profile | P8 (160×160) |
