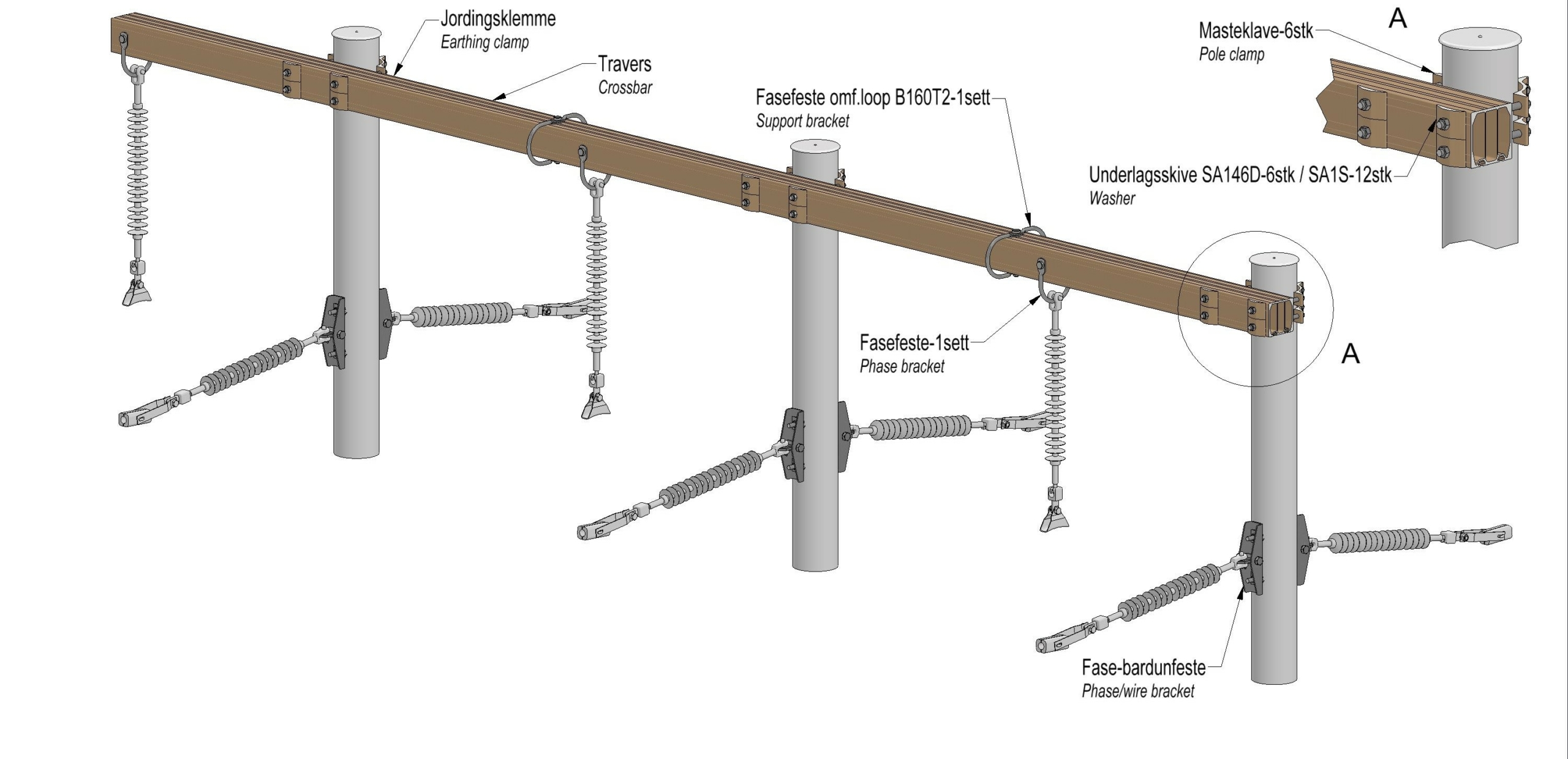

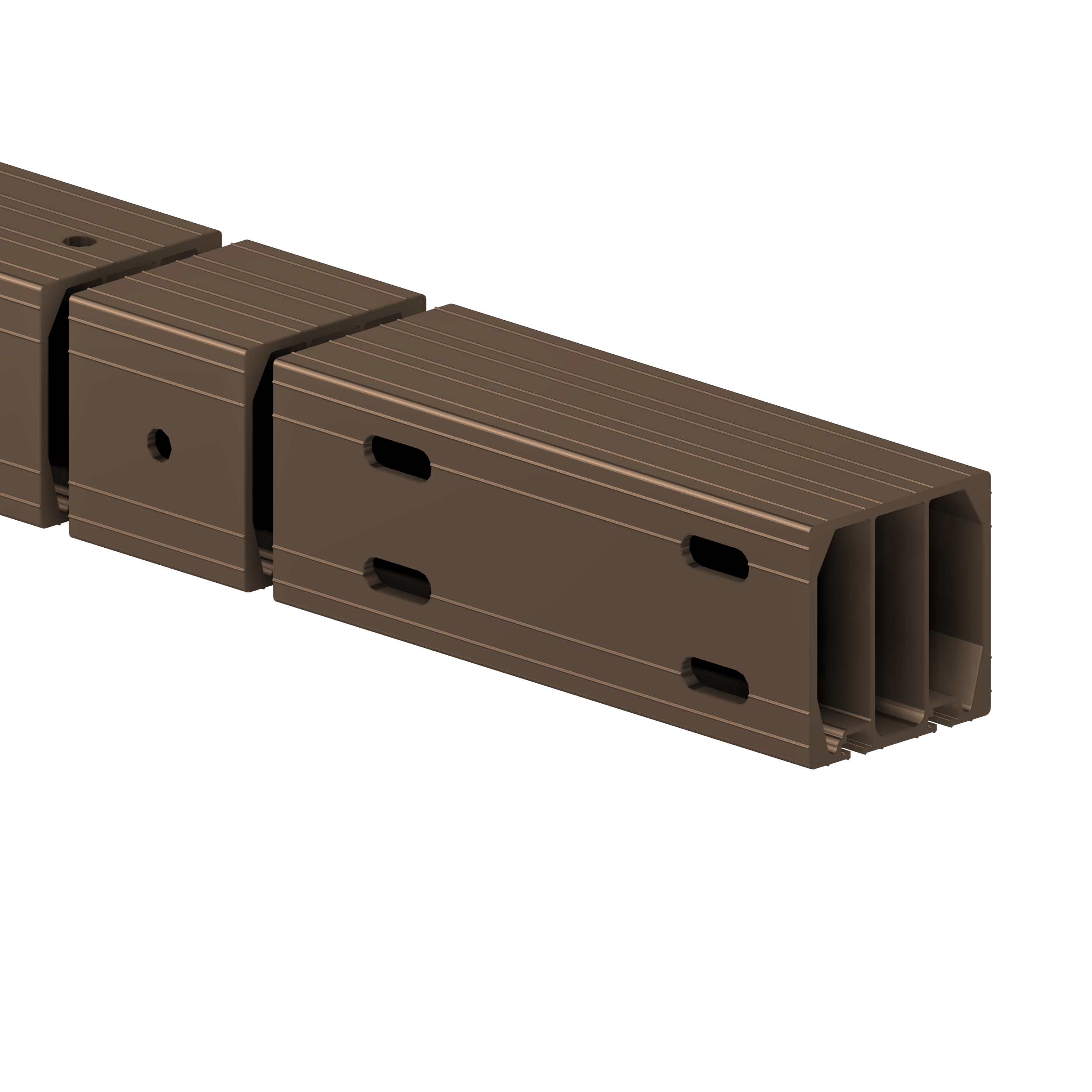

Anch. crossbar T3AOE-4545D-34-8S
Anchoring crossbar for two-sided connection. 3-pole.
For overhead shield wires and face wire loop.

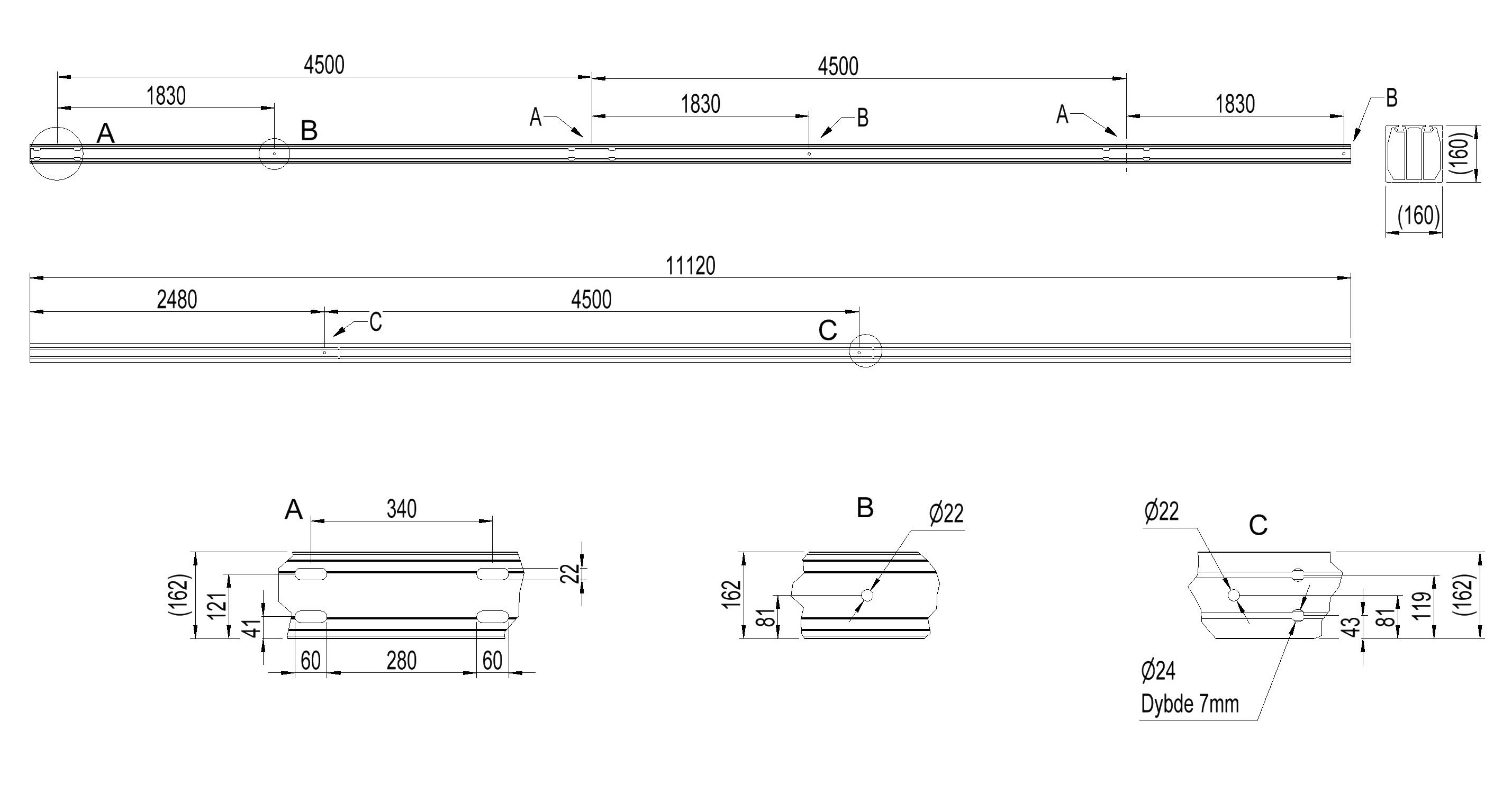

Pole distance 4,5m, phase distanse 4,5m.
Twin pole clamp. Oblong hole distance 340mm.
Additional information
| Material | Aluminium, anodised-brown |
|---|---|
| Crossarm type | Triple pole |
| Pole distance | 4,5m |
| Phase distance | 4,5m |
| Pole fastening | 340mm-double pole clamp |

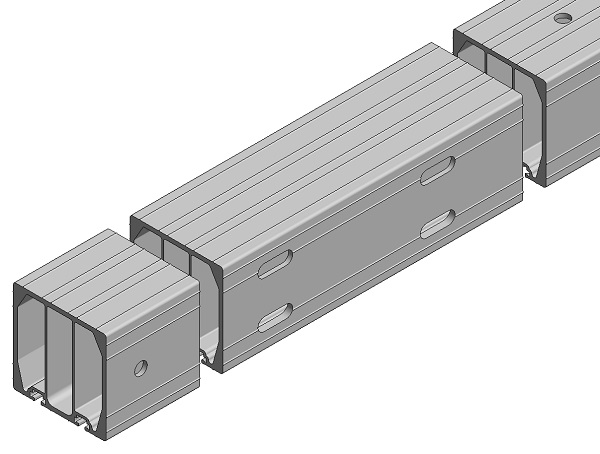

| Crossbar profile | P8 (160×160) |
Related products
-
Phase bracket F160-8E2
2836640anchorsfeste one-sided. For crossbar P8, width 160. Unit set of 2.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -

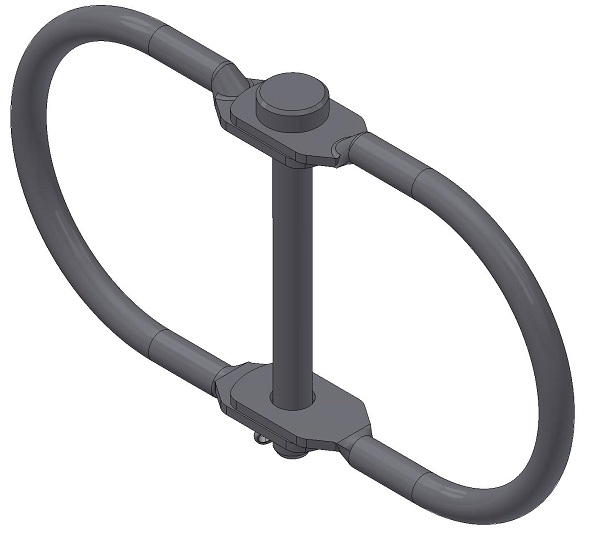

Phase bracket B160T2
2836743Phase stirrup bracket two-sided for toppline. Suits crossbar P3, P8, width 160. Unit set of 2.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -

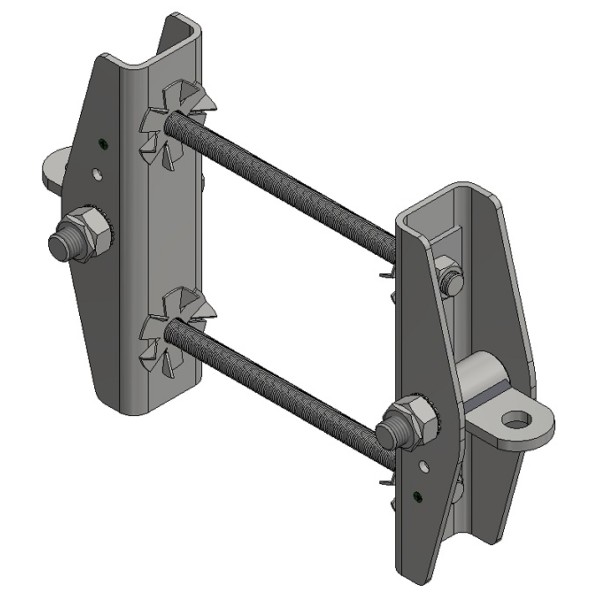

Phase/wire bracket FB160
2836744Phase/wire bracket two-sided. With bolts M20 and bolt distance 182-218mm.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -
Earthing clamp J10
2836836Earthing clamp M10. Fits all crossbars with M10 profile tracks. For all crossbars except cable cross bars.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -
Washer SA146D
2836479Washer length 146mm. Hole 2xØ22mm. Important: always to be used to the crossbar together with pole clamp.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -
Washer SA1S
2836894Washer length 80mm. Hole 1xØ22mm. Important: always to be used to the crossbar together with pole clamp.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -

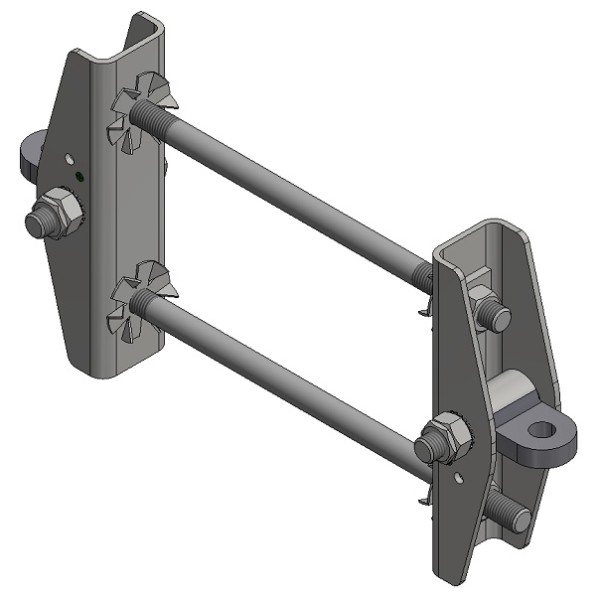

Phase/wire bracket FB200
2836748Phase/wire bracket two-sided. With bolts M24 and bolt distance 182-218mm.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -
Earthing clamp J10V
2836837Earthing clamp M10 90-degree. For all crossbars except cable cross bars. For earth wire KHF25-50. Should be used on crossbars with slot upwards.Product Added to Quote Successfully.Legg i innkjøpsliste
View Quote -

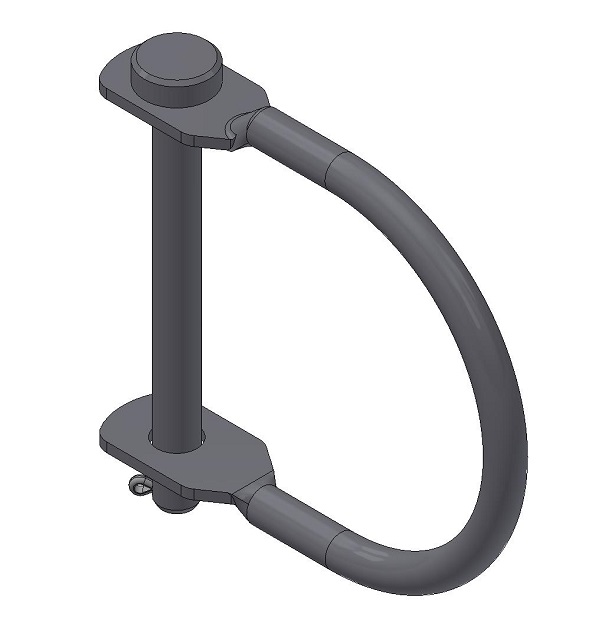

Phase bracket B160-8E
