Anch. crossbar T3AOE-4545D-8S
has been added to your quote.
Anch. crossbar T3AOE-4545D-8S
SKU: 2836431
EAN: 7070695007304 Weight: 188.8kg Unit: PSC

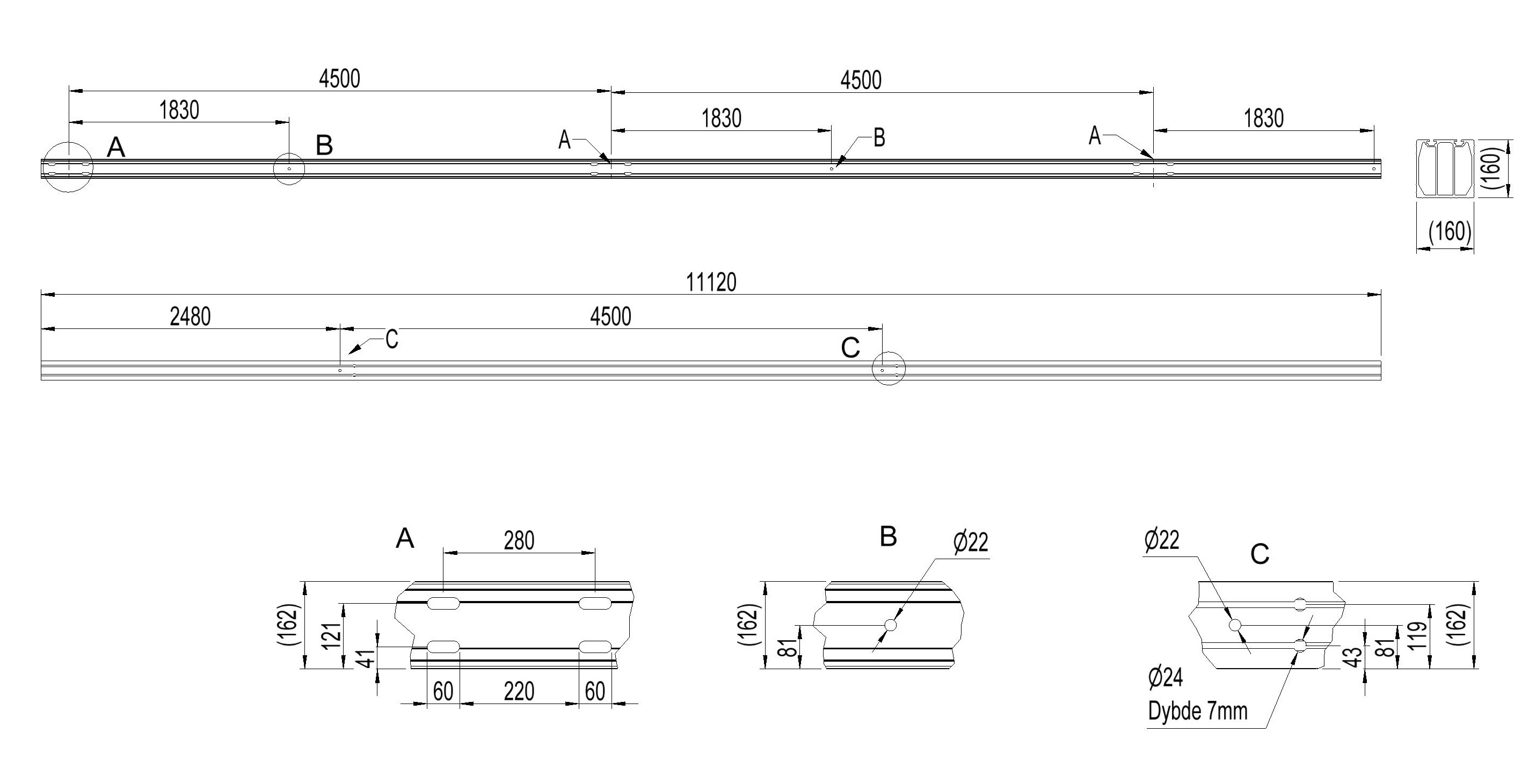

Anchoring crossbar for two-sided connection. 3-pole.
For overhead shield wires and face wire loop.
Pole distance 4,5m, phase distanse 4,5m.
Twin pole clamp. Oblong hole distance 280mm.
Additional information
Material | Aluminium, anodised-brown |
---|---|
Crossarm type | Triple pole |
Pole distance | 4,5m |
Phase distance | 4,5m |
Pole fastening | 280mm-double pole clamp |
Crossbar profile | P8 (160×160) |
